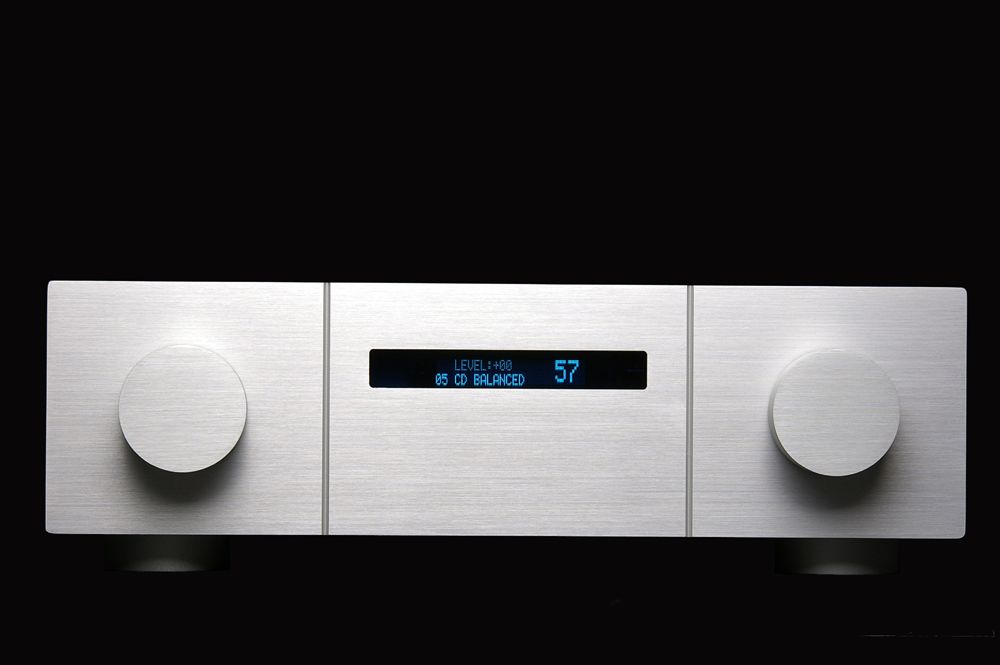

Click On Main Image for Larger View




Power supply:
2 x 180 Watts RMS 8 ohms 1'000 VA
4. unbalanced RCA - 2. balanced XLR
Rec Out - 1.
Unbalanced Output:
1. balanced
Out Put Remote Control:
Dimensions & Weight:
W x H: x D - 430 x 118 x 450 cm / 28 Kg
Digital volume control on outputs:
1 & 2 for multi-room or passive subwoofer.
Adjustable inputs and outputs: 1 ± 10.dB / Balance L & R ± 10.dB, user defined input and output labels on front end display- Proprietary MA-ZAP Remote Control.




From a purely technical standpoint, the challenge was to design a circuit that would be simple and yet uncompromising in terms of musicality and reliability. Using Surface Mounted with tight tolerance components associated with traditional ones at the most strategic places enabled to shorten the signal path length.


The amplification uses the highly acclaimed Hitachi Lateral Mosfets 2SK1058 & 2SJ162 complementary power transistors, in a configuration of two pairs per channel. The input section uses a cascode differential stage for the best performance. Both the pre-driver and the driver stages are based on High-Voltage Power Bipolar Transistors used in HF designs. The driver operates in pure class A. The circuit is fully direct-coupled but for a single ingress capacitor.

Each channel has its own power supply with a lefty 60,000 microfarads of filtration, achieved via high current diodes without switching peaks. A delayed start-up function linked to the D.C. protection circuit is built into each channel. The gigantic 1000 VA toroidal transformer has two separate windings for each channel. To avoid current saturation, a power resistor has been placed in the power supply. After a very short delay, this is coupled to a power relay that limits the current. The loudspeaker output terminals are fed by solid copper bars. The command receptor mounted on the faceplate works with the microprocessor, the switched power supply, the display, and six high-quality Wolfson digital volume control circuits.

A description of the Mimetism would not be complete should one omit the superb remote control. This long bar of aluminum cradles nicely in the hand and is equipped with two clusters of buttons. The larger cluster controls the Mimetism CD player, but may also control any machine that uses RC-5 codes. The second cluster controls the amp and gives access to a wide range of functions via scrolling menus. Special functions are activated when the remote’s red LED is illuminated. These functions give access to the adjustable level of every input (relative to the others), to L-R balance, and allow the possibility of renaming the inputs and outputs. The user may also control the output level by +/- 10 dB (in relative terms from one output to the next, or in absolute terms via an independent potentiometer). Last but not least, one can obviously monitor one source while recording another source simultaneously.
