FREQUENCY RESPONSEs
20 Hz–20 kHz +/-0.1 dB
SIGNAL TO NOISE RATIO
"A" WEIGHTED w/ 0.5 mv input
-80 dB
GAIN
58-76 dB in 6 dB increments
INPUT IMPEDANCE
Adjustable from 10 Ohms to 1 K Ohms
POWER SUPPLY
Optional
DIMENSIONS
7.1w x 2.4h x 12d in.
18w x 6.1h x 30.5d cm
POWER SUPPLY
8.3w x 2.5h x 6.5d in.
21.1w x 6.4h x 16.5d cm
WEIGHT
WITHOUT POWER SUPPLY
Shipped 12 lb., 5.5 kg

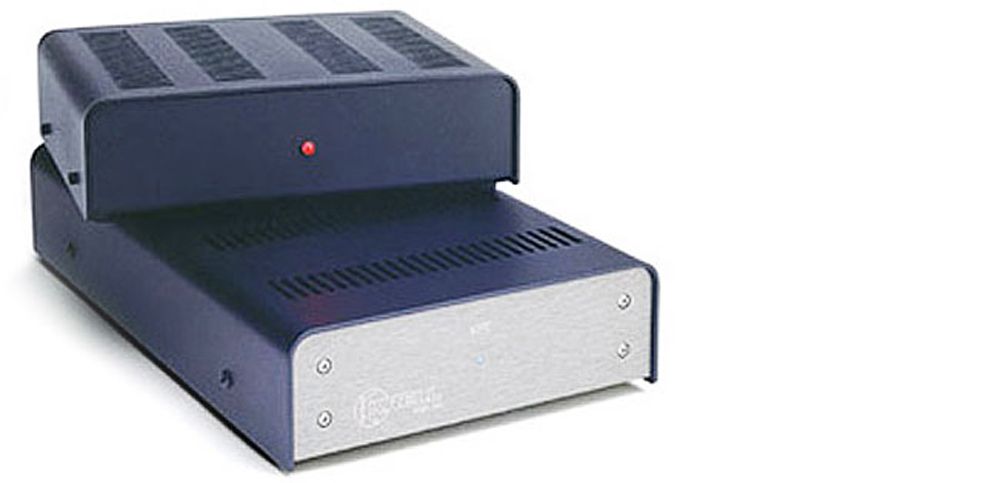

The Reference KPE component is a high performance phono preamplifier designed to work with any moving coil cartridge, offering a wide range of impedance selection for precise cartridge/phono preamplifier matching.
The Reference KPE is optimized for use with moving coil phono cartridges. The Reference KPE comes factory set with a 70 dB gain and a 100 Ohm load impedance setting. The available gain settings include 58, 64, 70, and 76dB. Cartridge loading choices include 10, 25, 47, 100, 249, 475, 825, and 1000 Ohms.
