DAC Resolution : 24 bit/192 khz 2 converters, 1 per channel;120dB of signal to noise ratio at the converter.
Analog Stage : ANALOG OUTPUTS:
2 x XLR (Right & Left Balanced channels)
2 x RCA WBT (Right & Left unbalanced channels) Power supply : EMI rejection by Schaffner filter. 7 transformers and 11 regulations: one for each critical part of the converter, digital input stage, digital upsampling and processing, converter, analog output. Detachable AC cord with Fischer HIGH QUALITY Umbilical 1.2 meter long harness between both units Power consumption : 3 - 50 VA Standard Digital Outputs : none Optional Digital Outputs : none Digital inputs : One DIR per digital input
2 x S/PDIF (RCA WBT) one for 44.1 and one for 96 khz
1 x ATT/ST glass fiber optic
1 x AES/EBU-XLR
Front Panel : Silver Dimensions (WxHxD) : 450 x 75 x 390 for converter
450 x 75 x 390 for power supply Weight : 12 Kg / 25 lbs for converter
13 kg / 27 lbs for power supply

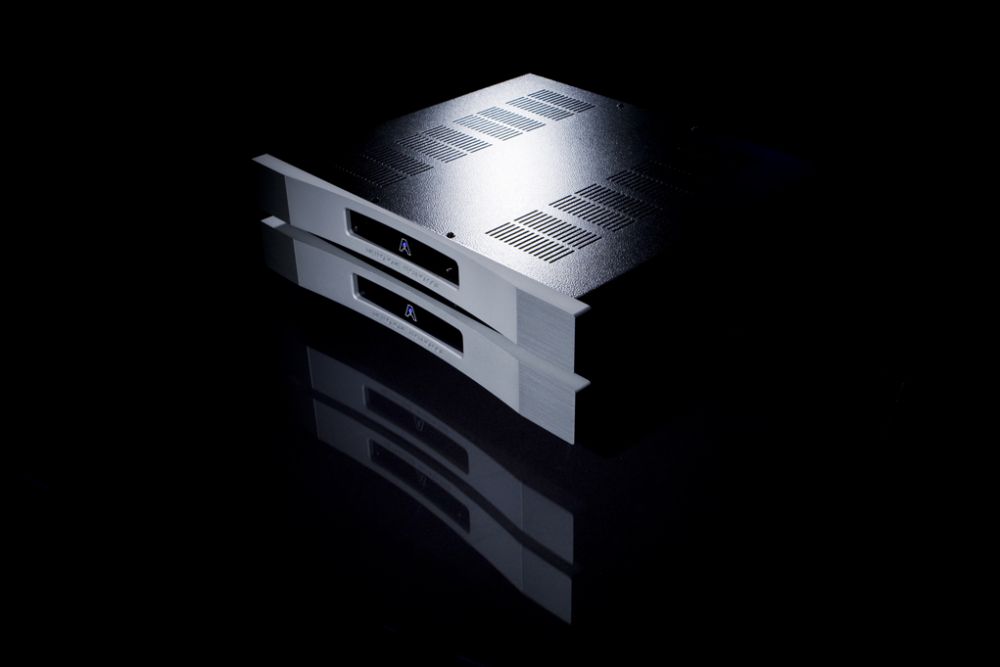

Two box design Digital to Analog converter based on the best 24bit/192khz technology available with proprietary circuit and design.
One box is dedicated to the converter, output electronic and digital inputs, the second box contain a separate power supply with 7 transformers. This configuration provide an heavy protection from EMI/RFI radiation from the outside world and reduce the negative influence of mechanical vibration from the transformers.
Each digital input use it own DIR for a lower level of jitter. A selectable upsampler is included for all inputs.
The tube output stage is isolated from digital radiation by the use of a separate power supply and a proprietary configuration of the tubes
