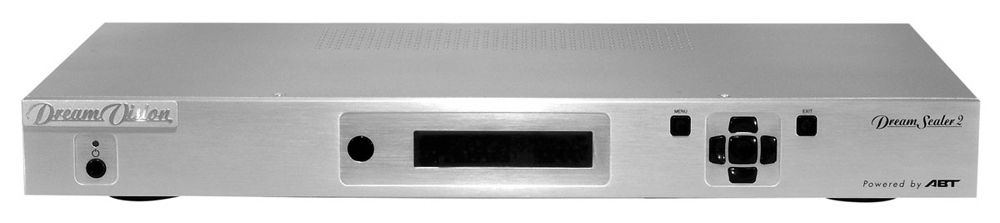

Resolution 1920x1080 pixels (Full HD) Projection system 3x 0,82" D-ILA chips Image processing External video processor DreamScaler2 powered by ABTÂ Projection lens 16 full glass elements Integrated optical zoom
(motorized) 1.9x (2.0 - 3.8:1) Long throw
1.4x (1.5 - 2.1:1) Short throw Contrast ratio 3500:1 Brightness 800 lumens Colour reproduction > ITU-R BT709 HDTV standard Colour temperature D65 standard - User adjustable Lamp 200 W Lamp life 2000 hours Vertical Offset 0 to 60% Video compatibility HDTV : 480i/p, 576i/p, 720p/50/60, 1080i50/60, 1080p48/50/60

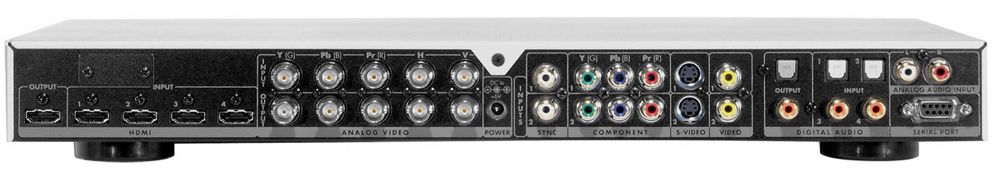

SDTV : NTSC, NTSC4.43, PAL, PAL-N, PAL-M, SECAM Inputs 4 x HDMI (rev 1.1 with HDCP)
2 x Component 3 RCA
1 x RGBHV 5 BNC / Component
2 x Composite Video RCA
2 x S-Video
1x SD-SDI (optional) Home automation Yes (through RS-232C serial port) Screen trigger Yes (3,5mm mini-jack) Power consumption Max 350 W
Standby mode <8 W Humidity and temperature 20% to 80% humidity non condensing 5°C to 35°C Standard accessories AC power cord
Remote control (with batteries) Audible noise 27 dB Dimensions (WxHxD)
projector / video processor 630 mm x 239 mm x 600 mm
434 mm x 55 mm x 263 mm Weight
projector / video processor 18 kg
2,9 kg

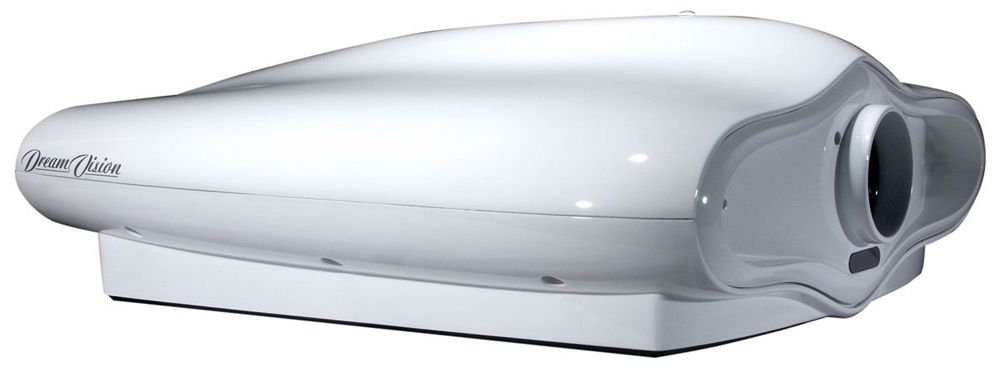

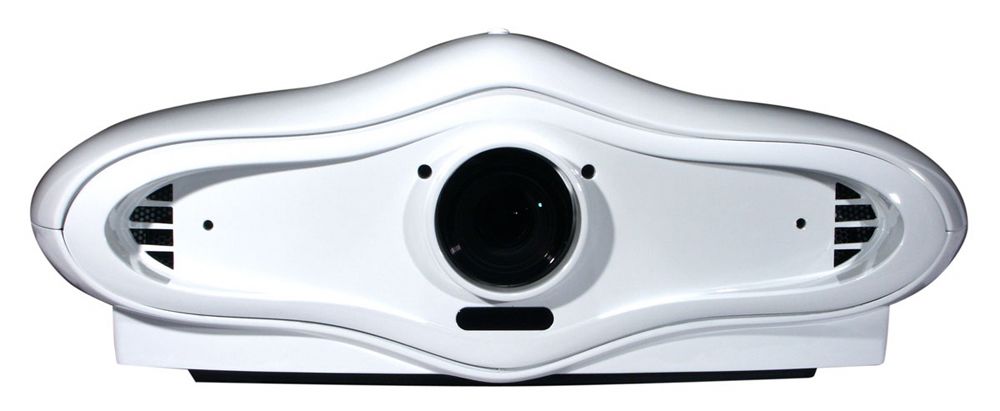

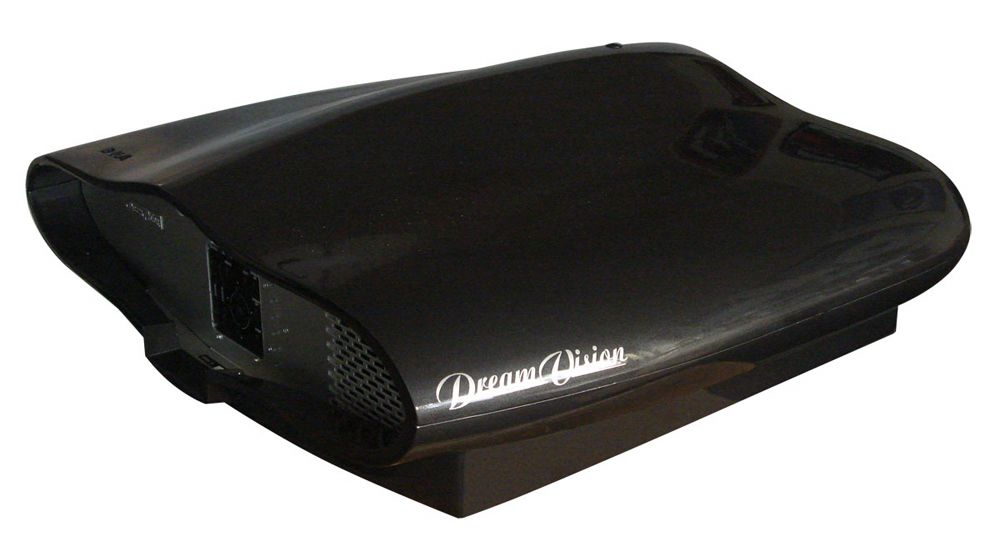

The CinemaTenÂ80 offers an outstanding film like quality picture thanks to the three 0.82" D-ILA chips light engine. Each primary colour is processed independently into the heart of the projector through a ColorSelect filter and a complex prismatic system to obtain a high temperature white and a wide gamut response that exceeds HDTV standard.
The native resolution of the CinemaTenÂ80 is 1920x1080 pixels (Full HD), and fully supports any HDTV standards without down-scaling. With its D65 colour calibration, which is the home cinema standard, the CinemaTenÂ80 produces natural and consistent colour gradations in any circumstance, including deep black and absolute white. The easiest installation ever thanks to the electronic zoom and focus available for both the long throw version and the short throw version. The enjoyable 0-60% vertical offset and the stylish French design make the CinemaTenÂ80 the ideal choice projector in any Home Cinema installation. The 10-bit video processing features the latest technologies to perform a smooth and detailed picture. Thanks to the twelve available inputs, connect and enjoy every multimedia source as DVD-Player, HD-DVD source, satellite receiver or multimedia computer on a very large screen.
