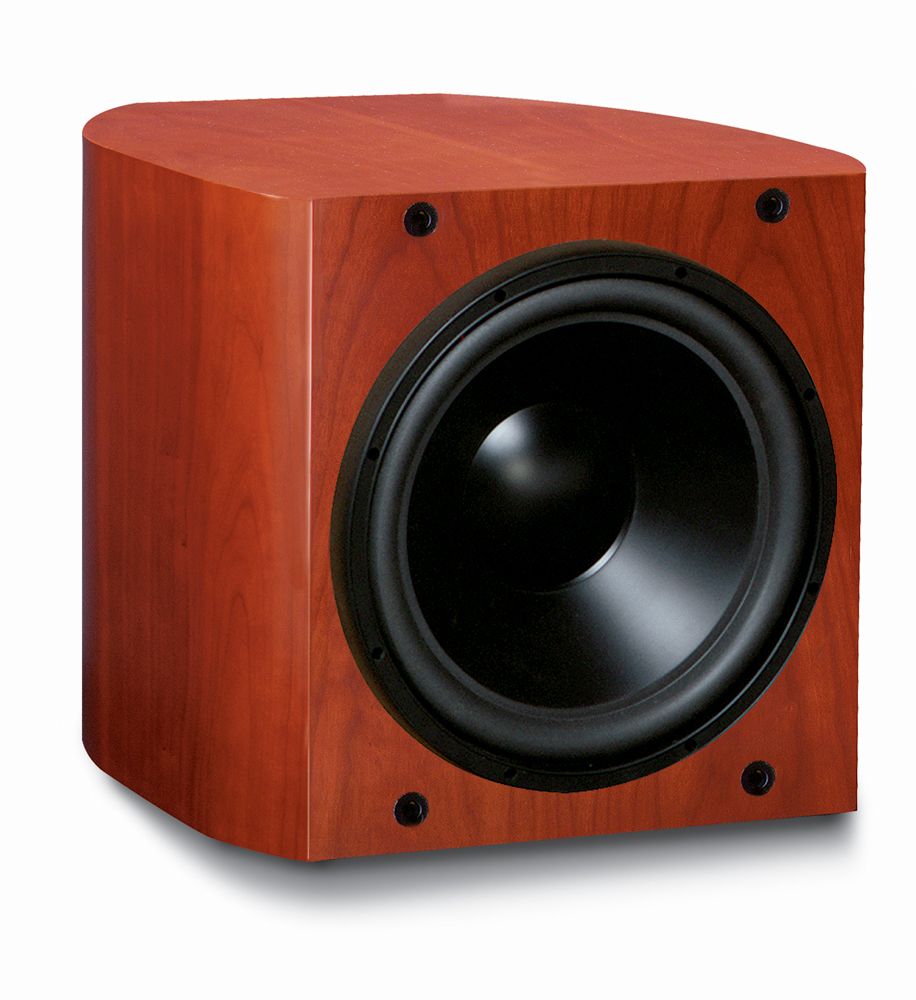

The Resolution Sub features a 1" MDF enclosure with 2" thick front and rear baffles. A sealed box design promotes clean, accurate bass, and a separate control cavity completely isolates electronics package from the driver.

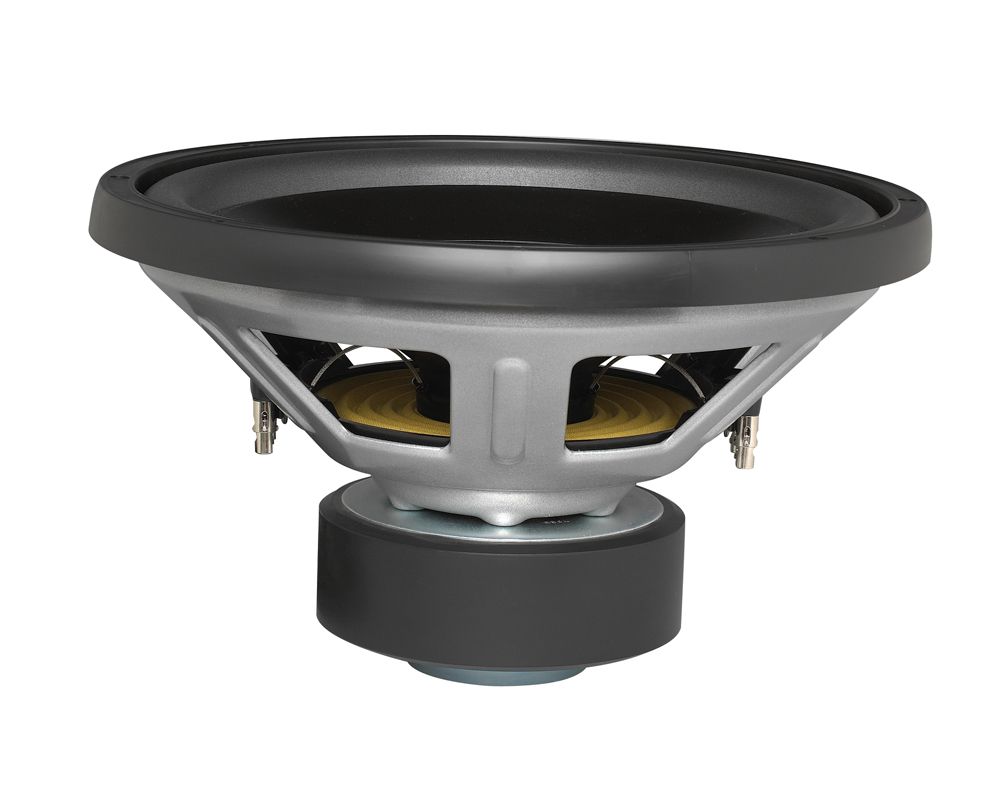

A 15" driver utilizes a very stiff, reinforced polypropylene cone and an extra long voice coil. Peak to Peak linear travel is a very impressive 1-3/8". Special motor geometry focuses the magnetic field in the gap. This promotes a piston-like cone motion and lowers driver-born distortions.

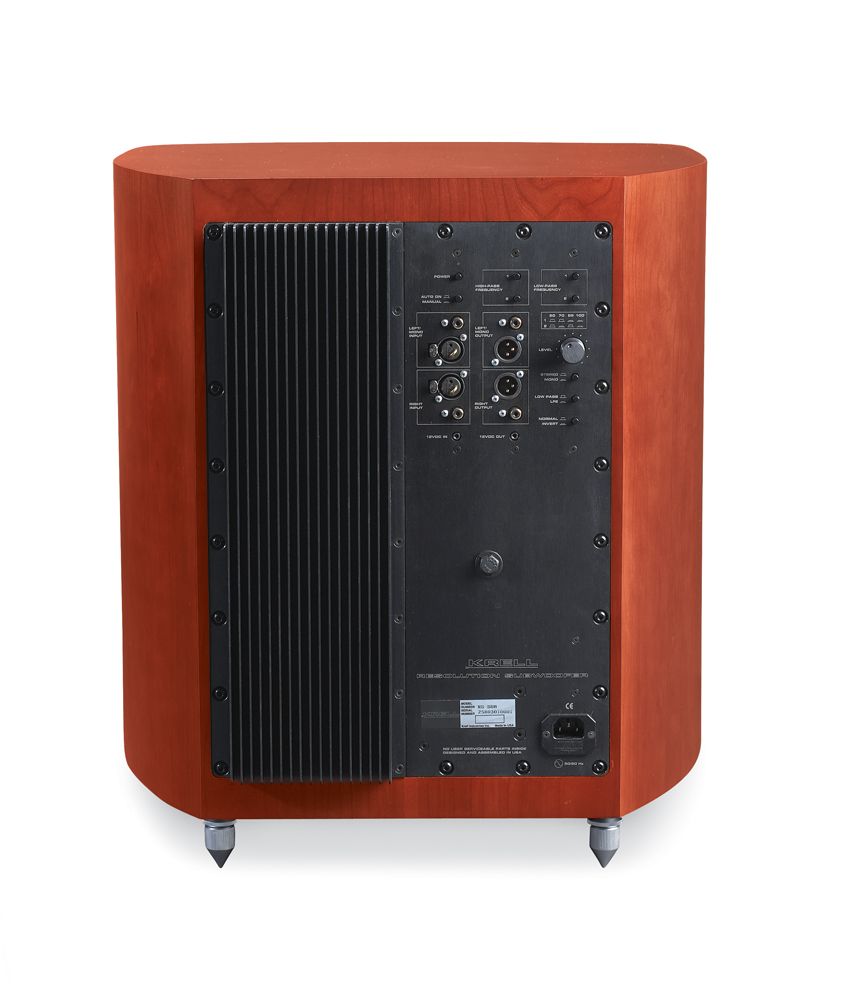

The rear mounted, 700 watt Krell Current Mode power amplifier is a Class AB design. Ample power reserves are insured through the use of a 1000-watt transformer and 55,000 microfarads of filter capacitance. This Class AB amplifier is a proprietary Krell deign. It provides power quickly, and sustains power indefinitely providing complete control of the driver under the most demanding conditions.
A user-configurable, stereo crossover features independent low and high pass Butterworth filters with selectable frequencies at 40, 60, 80 and 100 Hz. Balanced and single ended inputs are provided. Remote turn-on options include signal sensing inputs and 12 VDC trigger.
Powered Subwoofer
Krell Resolution Series Loudspeakers are designed to complement perfectly the finest audio and home theater systems. All models feature high current crossover designs, custom made drivers and heavily braced enclosures. Resolution Series Loudspeakers convey all of the power and dynamics of your favorite music and movies, with a range of models to match every budget and system configuration.
Designed to anchor the finest home theaters in the world, the Resolution Subwoofer plumbs the depths of your favorite movie soundtracks. No need for chair-shakers or other gimmickry, this woofer delivers real, gut wrenching low end with a speed and clarity that are a shock to the sensibilities. The Resolution Subwoofer adds a whole other dimension to music and movies. Experience the difference that a true, high performance subwoofer can make in your system.
