Preamplifier :
1 MC input
1 MM input
4 line inputs
1 output
1 mute
1 recording input/output with monitoring
2 units: Module and separate power supply
Protection against DC at the output
Phono and auxillary section
Phono Section:
Moving coil
- Sensitivity: 200 UV
Input Impedance: 35 Ohms
Overload level (before clipping at 1KHz): 13 MV
Distortion for 2V at the output: 0.1%
Phono Section:
Moving magnet
- Sensitivity for 2V at the output: 1.8 MV
Input Impedance: 48.7 Kohms
Overload level (before clipping at 1KHz): 66 MV
Distortion for 2V at the output: 0.1%
Auxillary Section:
Sensitivity for 2V at the output: 120 MV
Distortion for 2V at the output: 0.1%
Maximum output level before clipping: 56 V rms
Tubes:
6 x 12AX7/ECC83/7025
3 x ECC188 or ECC189
Power supply: 1x EL86 and 1 x EF86
Dimensions:
Dimensions: 2 chassis 43 x 17 x 32 cm
Weight: 22 Kg

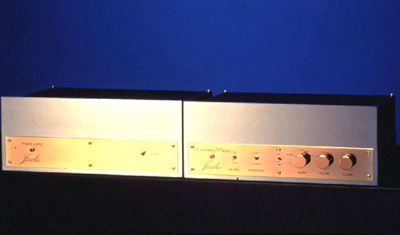

Valve preamplifier and separate power supply
JP 80 MC This preamplifier creates a visual effect of abundance from the point of view of colours and forms as well as an optimal use of space.
