532Frequency Response
20 Hz to 20 kHz, +0, -0.15 dB
<0.2 Hz to 110 kHz,+0 dB, -3 dB
Signal-to-noise Ratio
Wideband, unweighted, referred to full power output:
>108 dB
"A" weighted: >116 dB
Gain: 26.2 dB
Total Harmonic Distortion (THD)
< 0.03%@ 1 kHz, at 150 W, 8 Ohms
< 0.20%@ 20 kHz, at 150 W, 8 Ohms
Input Impedance
90 kOhms
Input Sensitivity
1.70 Vrms
Output Power, each channel driven:
150 Wrms @ 8 Ohms
300 Wrms @ 4 Ohms
Output voltage
98 V peak-to-peak, 35 Vrms
Output current:
15 A peak
Slew Rate:
50 V/μs
Output Impedance
<0.073 Ohms at 20 Hz
<0.084 Ohms, 20 Hz to 20 kHz<
Dampening Factor
110 at 20 Hz, referred to 8 Ohms
95, 20 Hz to 20 kHz, referred to 8 Ohms
Power Consumption
Stand-by: 25 W, Idle: 55 W,
Maximum: 900 W
Heat Output, BTU/hr.
Stand-by: 85, Idle: 190, Maximum: 1100

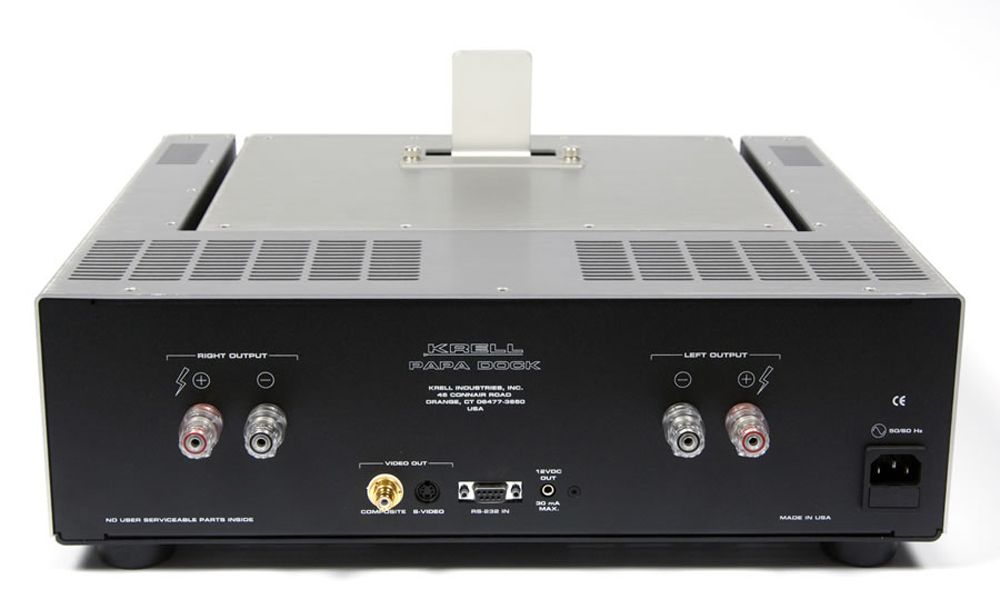

Inputs
1 40-pin KID connector
1 RS-232 (to control KID) via a 9-pin
D-subminiature connector
Outputs
2 channel via 5-way binding posts
Remote Connectors
One 12 VDC output (12 V trigger), 30 mA maximum,
via a 3.5 mm connector
S-Video (from KID) via mini-DIN connector
1 composite video (from KID) via RCA connector
Dimensions
Inches: 17.3 W x 5.7 H x 16.3 D
Centimeters: 43.8 W x 14.5 H x 41.3 D
Weight
Unit Only: 39 lb., 17.6 kg
Shipped: 49 lb., 22.2 kg

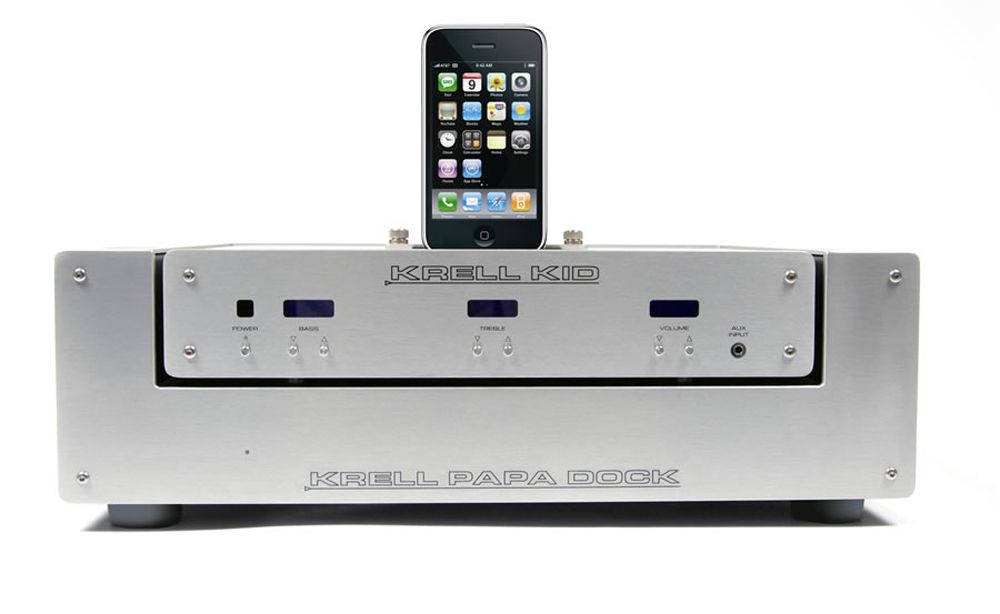

The Papa Dock is a dedicated
power amplifier for the Krell KID iPod dock. Based on classic Krell
amplifier technology, the Papa Dock mates directly with the KID and
supplies an impressive 150 watts of power. Coupled together, the Krell
KID/Papa Dock pair work as one to deliver audiophile performance to any
iPod listener.
Externally simplistic but
internally advanced, the Papa Dock circuitry follows an award winning
Krell recipe - great power and refined circuitry. Featuring a massive
450-Watt, 40,000 microfarad power supply, the Papa Dock is engineered
to drive virtually any speaker to realistic listening levels. Balanced
circuitry in the KID delivers music to the Papa Dock via a custom
connecting link, which then feeds signal to the Papa Dock output
stages. Physically isolated from each other, the left and right
channels incorporate discrete, direct-coupled topology, twelve high
current output devices and terminate in WBT speaker connectors.
Automatically responding to the insertion of an iPod, the KID powers on
the Papa Dock with the reverse being true when an iPod is removed.
