-Total harmonic distortion
20Hz - 20kHz < 0.007%
Signal-to-noise ratio
109dB "A" wtd.
Frequencey Response
20Hz - 20kHz +0/-0.2dB
Drive Mechanism
Teac
DAC
Burr-Brown DSD1793 24-bit, 19kHz
Analog Audio Outputs
Differential current-mode gain stage, discrete, DC coupled
Digital Audio Outputs
One each, coax and Toslink, up to 96kHz
Digital Audio Inputs
One each, coax and Toslink, up to 96kHz
Power Supply
Toroidal transformer, seperate analog and digital supplies, analog regulation is all discrete
HDMI Out W/HDCP
480i, 576i, 480p, 576p, 720p50, 720p60, 1080i50, 1080i60, 1080p24, 1080p25, 1080p30, 1080p50, 1080p60
Component Out
1Vp-p 480i, 576i, 480p, 576p, 720p50, 720p60, 1080i50, 1080i60
Composite Out
1Vp-p NTSC, PAL
S-Video Out
1Vp-p NTSC, PAL
Video Adjustments
SD outputs: brightness, contrast, saturation, hue, sharpness
Video Adjustments
HD outputs: brightness, contrast, saturation, hue, sharpness
Disc Media
CD-DA, CD-ROM, DVD-Video, DVD-ROM, DVD-R, DVD+R, DVD-RW, DVD+RW
Formats
Dolby Digital, DTS, CD audio, MP3, WAV
Power Consumption
11W stand-by, 24W operate
Dimension
17.26"W x 4.09"H x 17.70"D
438mmW x 104mmH x 450mmD
Weight (unit only)
25 lbs
11.4 kg

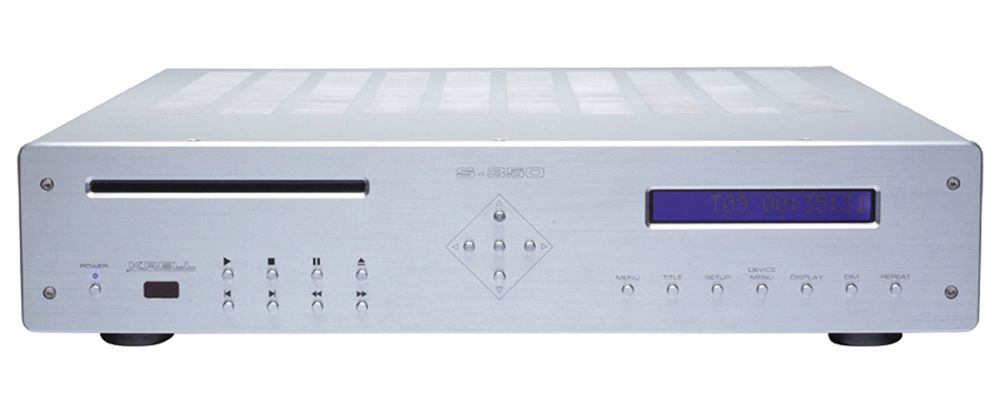

The S-350 CD/DVD Player is a
modular design featuring reference caliber CD playback as well as an
optional state-of-the-art video engine that provides stunning 1080p
performance and video processing controls. The base model, the S-350a
establishes a new high standard of performance and value among high-end
compact disc players. For home theater systems, the S-350a can be
equipped with a sophisticated 1080p video stage resulting in the
S-350av.
Incorporating an advanced TEAC slot
load disc transport mechanism (compatible with CD-DA, CD-ROM,
DVD-Video, DVD-ROM, DVD-R, DVD+R, DVD-RW, DVD+RW), premium digital
circuitry, Class A analog circuitry, Krell designed anti-jitter master
clock, and sophisticated high-linearity power supply, the S-350a
delivers performance unequaled by many more expensive players. It is
the ideal CD player for the serious music lover.
Matched
Burr-Brown DSD 1793 24-bit, 192 kHz digital-to-analog converters for
each channel provide fully balanced operation with exceptional
reproduction quality. The analog stage features Krell Current Mode,
discrete Class A, direct coupled, fully complementary circuitry.
A
coaxial and toslink digital input extends the S-350cd's digital to
analog conversion circuitry to two additional audio sources. 12VDC
trigger input/output ports enable connections for remote power on/off.
An RC-5 interface is provided for remote control system integration. A
metal handheld remote control is included.
The
S-350a complements the S-300i integrated amplifier both in industrial
design and sonic performance - a treat for the eyes and a feast for the
ears.
Adding Video Output
The
open architecture of the S-350a allows for the addition of a
sophisticated video circuit stage that creates a new DVD player model:
S-350av.
Optimized for the latest solid-state
video display technologies including LED, LCD, DLP, and DILA, the
S-350av includes a full complement of outputs. Video outputs include
HDMI with resolution up to 1080p, Component with a maximum resolution
of 1080i, as well as composite and S-Video outputs.
The
crucial final stage that delivers the video signal to the display
device comprises professional-grade circuitry. It is classic Krell
output stage technology applied to the video domain-robust,
uncompromising circuitry delivering the most vivid and detailed picture
available for the DVD platform.
