Vacuum tubes
6922 (6)
Output voltage
Rated 2V. max 40V
T.H.D.
Less than 0,02% (output 1V)
Input sensitivity
Less than 300mV (output 1V)
Input impedance
25 K ohms
Ouputt impedance
Less than 600 ohms
S/N ratio
More than 95 dB
Power consumption
40W
Nominal mains voltage
115V or 230V factory set for destination country only
Mains voltage range
12%
Dimensions
430 (W) 110 (H) 390 (D) mm.
Weight
8 kg.

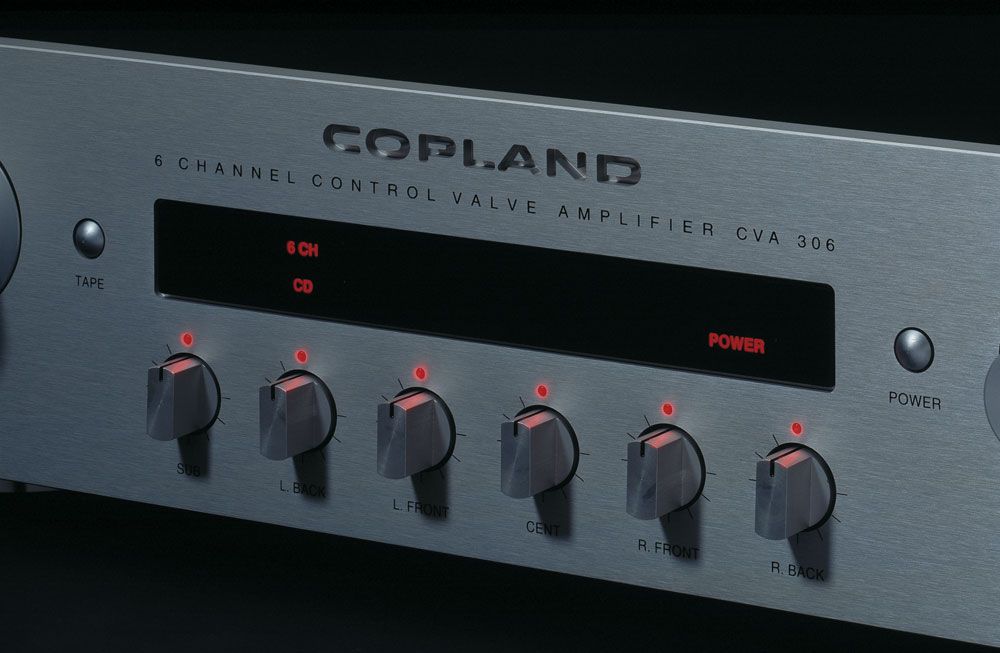

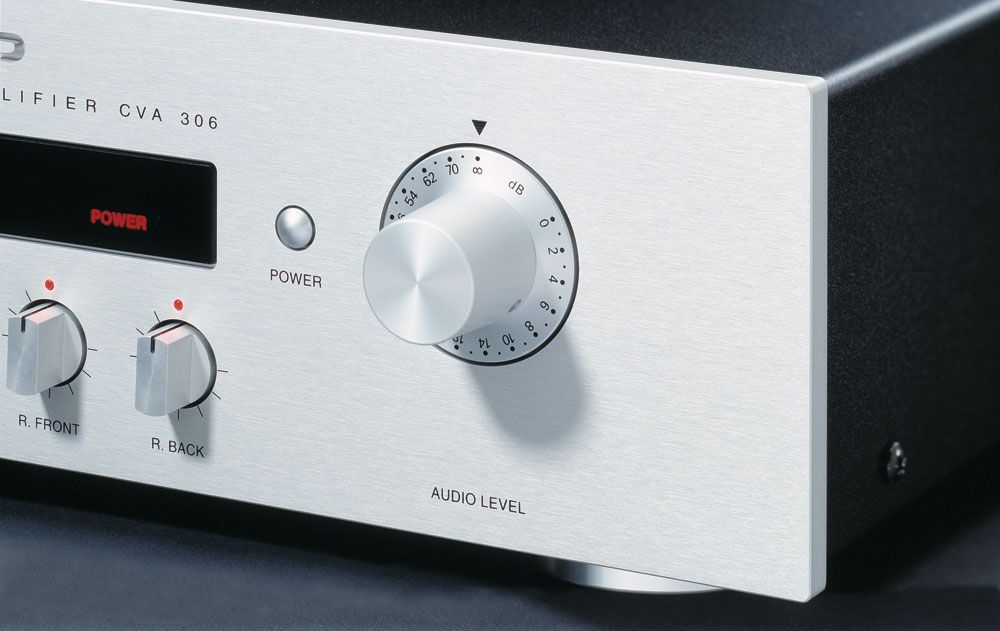

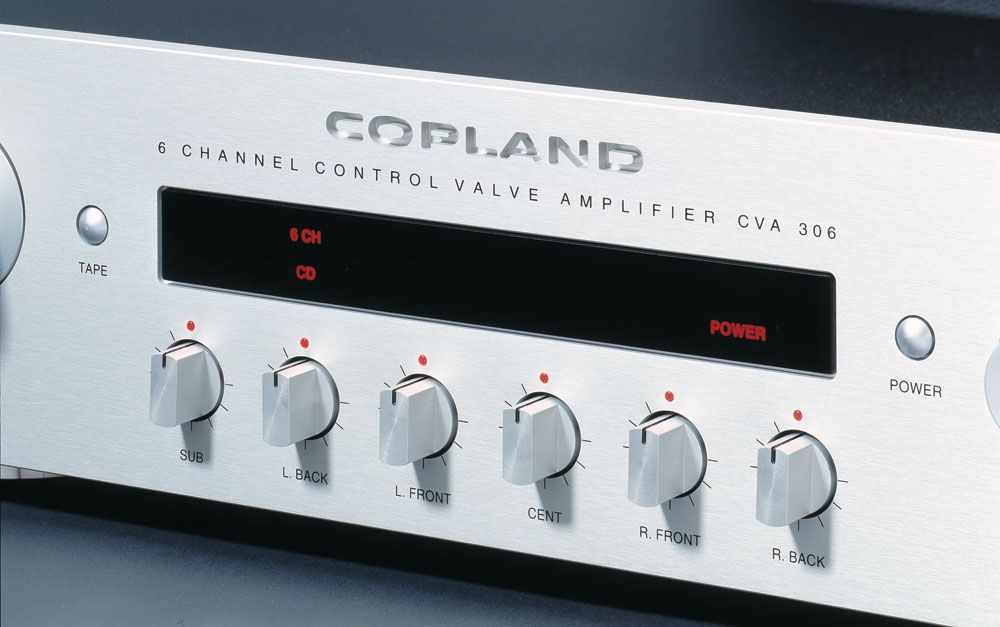

Valve Multi Channel Preamplifier, Remote Control
The CVA 306 six channel valve preamplifier establishes a new standard within multi-channel performance. In addition to the five normal stereo inputs, CVA 306 accepts six channel analog outputs from DVD surround sound / DVD or SACD audio.The pure class A high output voltage amplifiers of CVA 306 has a substantial overload margin and will, with effortless ease, accommodate the full dynamic range available from the digital program sources.
A substantial power supply rejection ratio is built into the signal carrying circuitry, in order to keep audio information completely unaffected by the power supply.Employing excellent line circuit identical to the COPLAND CTA 305, this amplifier offers the unique possibility to explore the authority of high quality valve amplification in a music and film system.
