HSE SWISS Masterline 7 www.hseaudio.com
When highest Swiss quality engineering meets Italian design.
TECHNICAL DATA
INPUTS 3 balanced
OUTPUT 1 balanced (24dBu)
GAIN 0.. 82 * dB, 1 kHz (37 position) *higher gain on request
IMPEDANCE 7.5 1k2 ohm & 47 kohm (24 position)
CAPACITY 33pF .. 680pF (12 position)
NOISE EIN -144 dB BW 22Hz .. 22kHz (49.8 nV)
RIAA passive balanced +/- 0.05 dB
THD not measurable
FREQ. RESPONSE 1.5 Hz .. 150 kHz
CROSSTALK >120dB
HEADROOM >24dB
SUBSONIC passive balanced 15 Hz, 18dB/oct
FUNCTIONS MUTE, phase, overload Ind., ground lift
ARCHITECHTURE fully balanced Class A, discrete,
high voltage, dual mono
CASE aluminum milled 20mm, champagne
POWER 100/115/230V 65 Watt
W/D BRUTTO flight case: 27kg / 780 x 560 x 240 mm
W/D NETTO ML-7: 14 kg / 446 x 88 x 410 mm
ext. PSU: 2.5kg / 110 x 115 x 280 mm
MASTERLINE 7

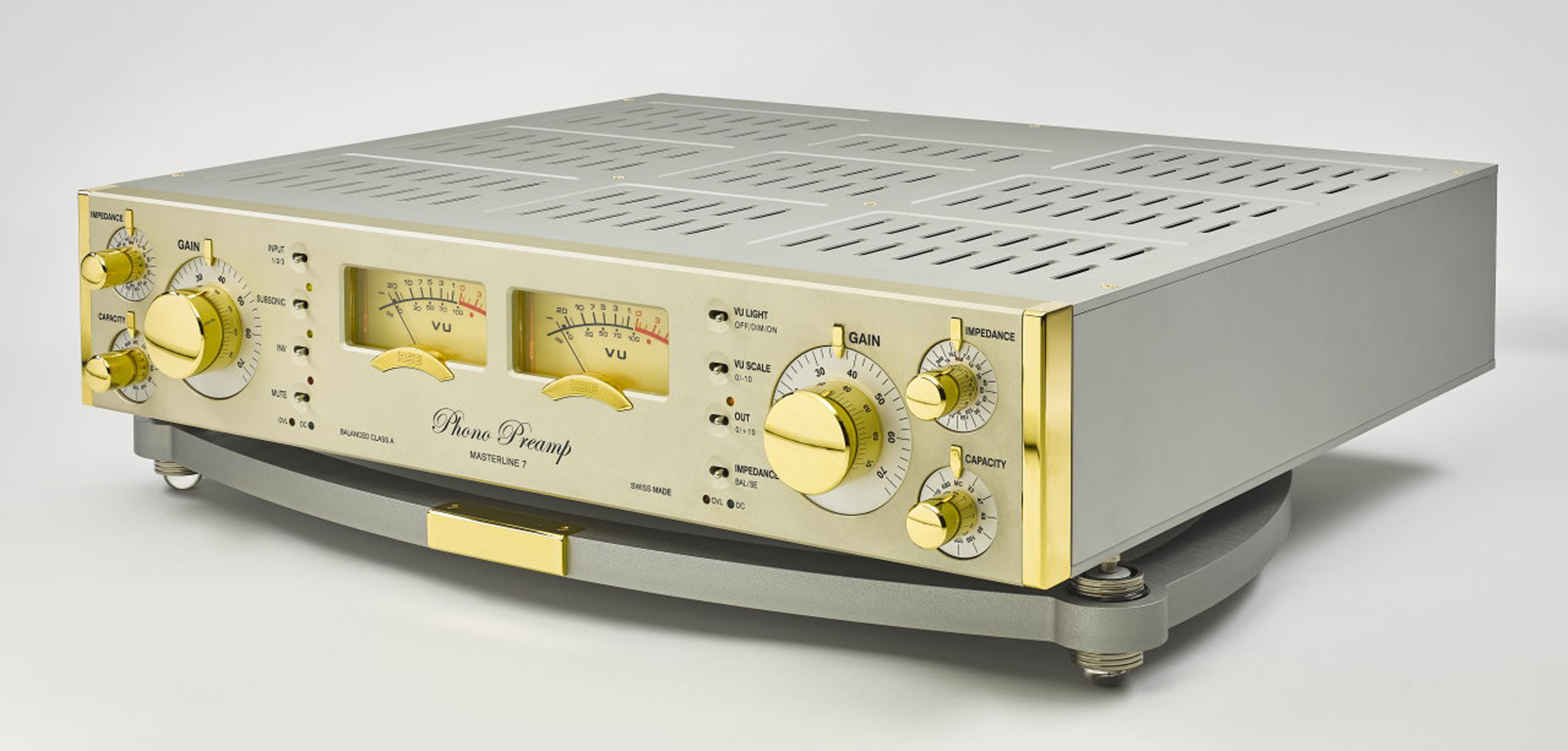

The HSE Phono Preamp Masterline 7 (ML-7)
represents the pinnacle of Audio Engineering, shown
here on its antivibration support stand.
Engineered for a life expectancy of at least 30 years,
only the highest quality handmade Swiss
components are utilized.
12 HSE discrete Class A Gain-stage and 2 Zero-ohm
Class A ultra-low noise head-amps guarantee best
possible audio performance.
For uncompromising EMC shielding, the case of the
ML-7 is milled from a solid aluminum block,
protecting the electronics with a 20mm strong

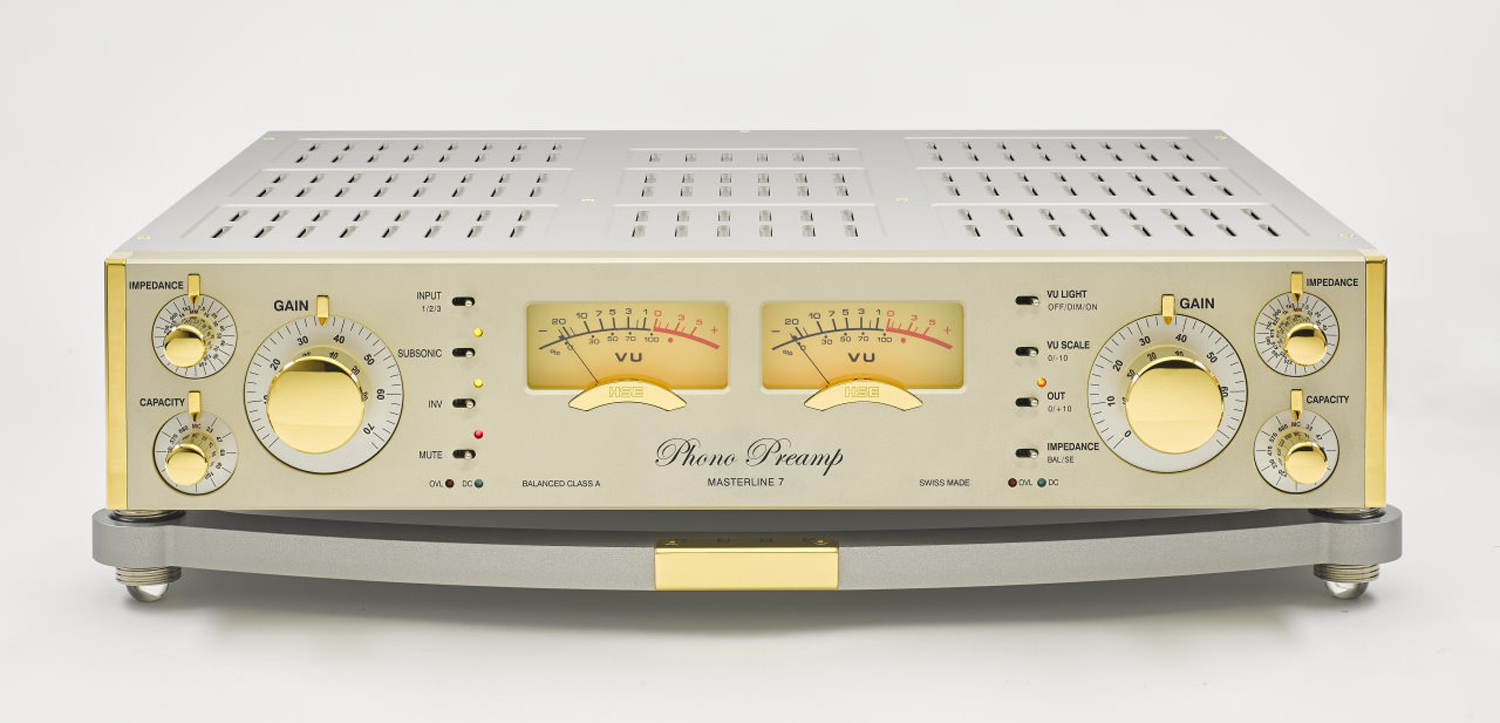

housing. Gold plated dials allow the adjustments of
the Dual Mono Preamp for each channel individually.
Each device passes a 2-week continuous hardening
and maturing test to reach the finest sound quality.
All electronic components are hand-selected and
matched up to 0.1% maximum variance.
To reach the ultimate uncompromising sound, only
the industries best components, from ELMA,
Goldpoint, NKK, Panasonic, WIMA, Neutrik, Schurter,
and HSE in-house wound coils are being used.
The audio signal passes our proprietary HSE silver-
teflon wiring and the oversized toroidal transformer
featuring static and magnetic shielding.
The Impedance selector is optimized for the industry-
leading Benz, Lyra, XYZ, Ortophon pickups. The unique
extensive gain range of the Masterline 7 equally
supports all alternative pickups of choice, no matter
how minimal their output levels are.
