Drivers
Woofers
Two—8 inches (20.32 cm)
Midrange
One—7 inches (17.78 cm)
Tweeter
One—1 inch (2.54 cm)
Enclosures & Materials
Enclosure Type Woofer
Rear Ported
Enclosure Type Midrange
Rear Vented
Enclosure Type Tweeter
Sealed
Measurements
Sensitivity
89 dB @ 1 Watt @ 1 Meter @ 1 kHz
Nominal Impedance
4 ohms / minimum 2.87 ohms @ 86 Hz
Minimum Amplifier Power
25 Watts per channel
Frequency Response
26 Hz – 30 kHz +/- 3 dB Room Average Response [RAR]
Dimensions
Height
41 11/32 inches (105 cm) w/o spikes
Width
12 inches (30.48 cm)
Depth
18 11/16 inches (47.44 cm)
System Weight Per Channel (uncrated)
160 lbs each (72.57 kg)
System Shipping Weight (approx.)
520 lbs pair (235.87 kg)
Introducing a remastering to one of, if not the most, iconic loudspeaker designs: The WATT/Puppy. Inspired by the original WATT/Puppy's legacy, the development of this instantly recognizable design began with a hopeful vision: to create a WATT/Puppy that would honor the original designer by utilizing current technologies and innovations refined for more than 50 years. Simply put, to build a WATT/Puppy that Dave Wilson would have built if he had the resources then that Wilson Audio now possesses.
The original WATT/Puppy underwent a total of eight evolutions from 1986-2011. These eight iterations utilized a variety of materials, each strategically integrated and available during their respective development periods. Each evolution of material usage pushed the boundaries of what was achievable in loudspeaker capabilities at the time.
In the early years, Puppy enclosures employed a laminated 60-lbs version of High-Density Fiberboard (HDF), while the WATT incorporated Polymethyl Methacrylate (PMMA).
Thirteen years after the retirement of Series 8, The WATT/Puppy now is constructed with the most refined versions of X-Material for the internal bracing and external enclosure, S-Material for midrange coupling to the front WATT baffle, and V-Material for the top of the Puppy, serving as the vibration-sink interface for the WATT.
Each of these unique materials is meticulously chosen for its specific performance characteristics, whether in the realms of vibration control or sound reproduction. This commitment to material excellence is one of many elements that ensures The WATT/Puppy delivers the best audio quality possible for this relatively compact design.

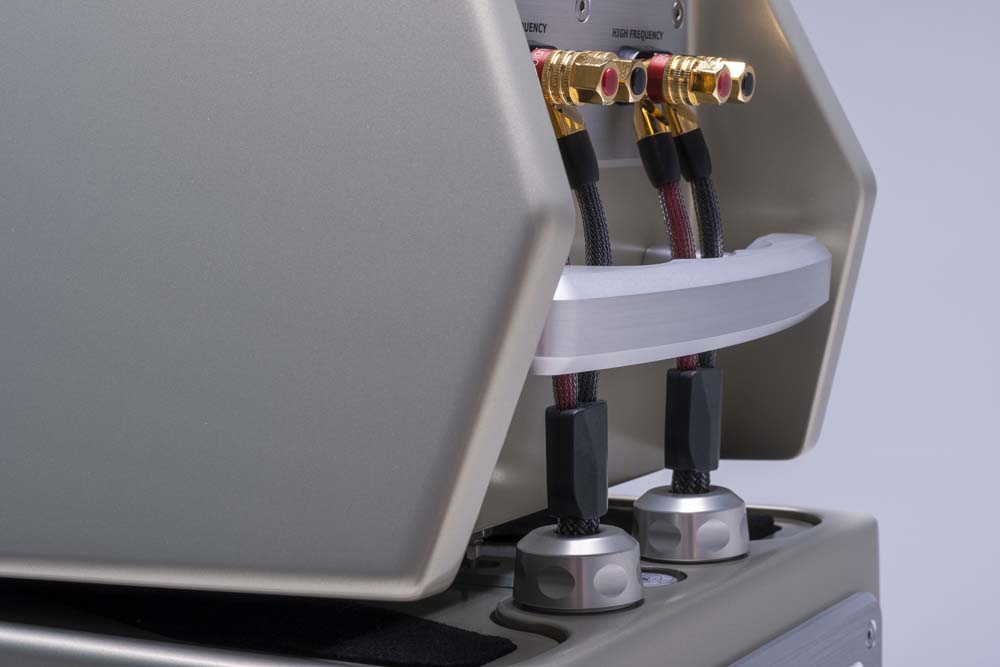

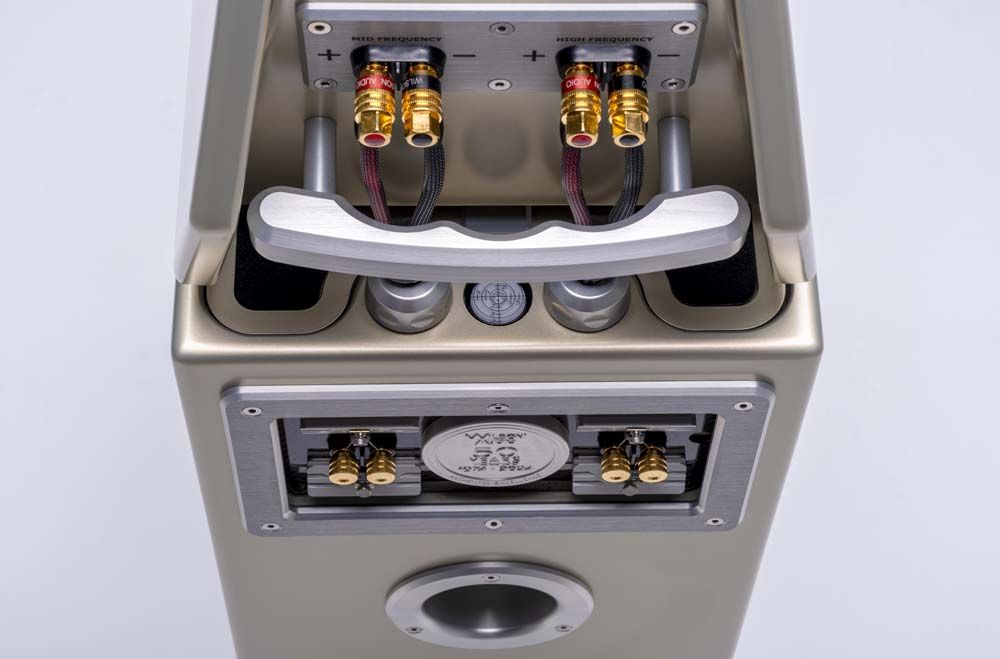

The rod handle on the rear of the original WATT was initially designed in 1985 as a practical way for David Wilson, founder of Wilson Audio and a recording engineer at the time, to transport his custom-made studio monitors to recording sessions. This functional and robust handle has since evolved for The WATT/Puppy. The current design is stylized for a secure and comfortable grasp at any angle. Similar to the original WATT handle, the new handle effortlessly supports the weight of the WATT during transportation and installation.
AudioCap Copper Capacitors
Wilson Audio's proprietary AudioCapX-WA capacitors are uniquely wound in-house by our Reliable Capacitors (RelCap) department to meet extraordinarily tight tolerances. This process enhances low-level resolution, revealing the subtle nuances of sound reproduction with remarkable clarity and depth.
Elevating our commitment to sonic purity, we have developed a new copper version of the AudioCapX-WA capacitor, a similar design initially unveiled with the esteemed Sasha V series. This iteration has been further refined with copper end-spray and gold leads, ensuring that high-frequency micro-details are rendered with exquisite resolution.
Wilson Audio's 50th Anniversary medallion was created to commemorate five decades of Authentic Excellence in sound reproduction and craftsmanship. Available exclusively throughout 2024 on The WATT/Puppy during Wilson Audio's historic 50th celebration, this limited-edition medallion is a badge of honor for this remastered iconic design. The color of the medallion corresponds to the color hardware chosen for The WATT/Puppy. Whether Clear or Black hardware is selected, the medallion will mirror that finish. Additionally, a unique Red medallion will exclusively accompany red paint variations chosen for The WATT/Puppy, making this version the rarest of them all.
