Product Search Result

NAME :

 Mezzo CSC

PRODUCT IMAGE :

Click On Main Image for Larger View

MANUFACTURER :

Wilson Audio

SPECIFICATIONS :

Drivers

Woofers:
Two—8 inches (20.32 cm) Paper Pulp
Midrange:
One—7 inches (17.78 cm) Paper Pulp Composite
Tweeter:
One—1 inch (2.54 cm) Doped Silk Fabric

Enclosures & Materials

Enclosure Type Woofer:
Front Ported
Enclosure Type Midrange:
Sealed
Enclosure Type Tweeter:
Sealed

Measurements

Sensitivity:
89 dB @ 1 Watt @ 1 meter @ 1 kHz
Nominal Impedance:
4 ohms / minimum 2.66 ohms @ 687 Hz
Minimum Amplifier Power:
25 Watts per channel
Frequency Response:
19 Hz – 32 kHz +/- 3 dB Room Average Response [RAR]

Dimensions

Height:
18 inches (45.70 cm) w/o spikes
Width:
31 inches (78.74 cm)
Depth:
22 7/32 inches (56.47 cm)
System Weight Per Channel:
200 lb (90.72 kg)
Approximate Shipping Weight:
288 lb (130.63 kg)



MANUAL:

BROCHURE:

BRIEF DESCRIPTION :

Wilson Audio approaches a new product release with the utmost care and consideration; every factor is examined, including the choice of materials, the aesthetic appeal, the technological advancements, and, most importantly, the auditory experience it delivers. A mere singular modification is not sufficient to warrant a new launch; instead, a multitude of enhancements must be present. That is exactly what you get with Mezzo CSC. We strive to push the boundaries of what is possible to deliver an unparalleled listening experience. We continue the legacy of “Excellence in All Things” with Mezzo CSC, combining cutting-edge technology and meticulous craftsmanship to create a loudspeaker that transcends expectations.

DESCRIPTION :






Mezzo

Mezzo CSC with Hourglass Stand


Mezzo CSC with Column Stand



Mezzo CSC with Spikes



Mezzo CSC with Spikes



Mezzo CSC is a work of art that not only sounds extraordinary, but complements your living space with elegance. You can install the Mezzo CSC directly on the ground or raise the loudspeaker height on a purpose-built Wilson Audio Stand.

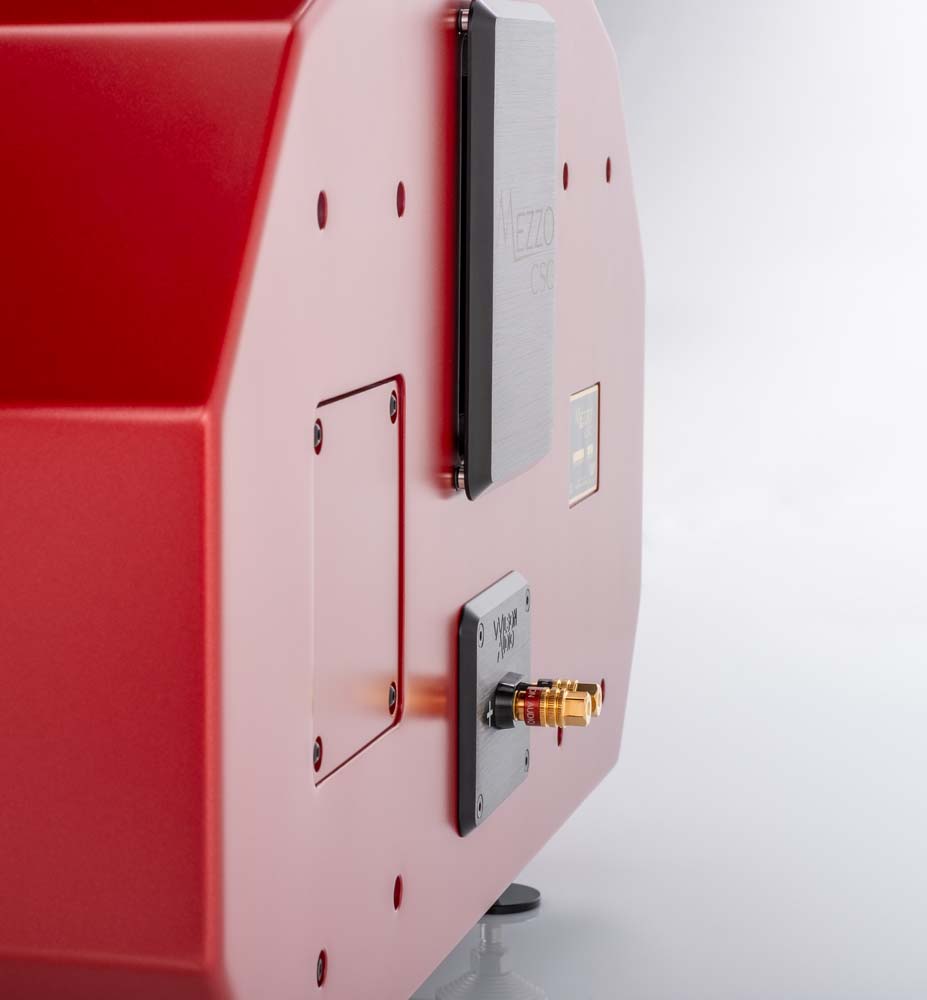

Custom-built Wilson Audio binding posts have now also been integrated into Mezzo CSC.  Both banana plug termination and traditional spade connections can be used with this binding post.  This premier binding post offers a clean signal path with an upgraded and larger contact surface area for your speaker cables.

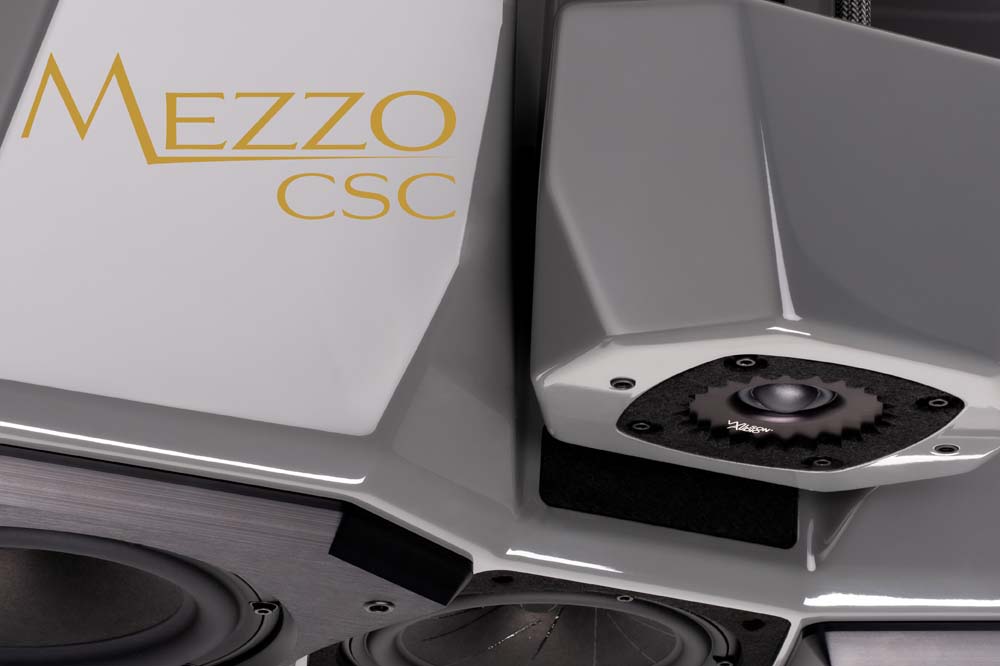

In addition to the CSC tweeter, the Mezzo CSC now has a fully adjustable tweeter module that allows you to customize your center channels alignment to any unique installation environment. Whether the Mezzo CSC is installed directly on the floor, on one-of-two custom-designed Stands, or in a custom cabinet, the Mezzo CSC's drivers can be properly aligned to accommodate any of these scenarios. In any room and in any configuration. This leap forward has enhanced the sonic experience melding the CSC tweeter flawlessly with the midrange and woofers thus ensuring that micro-details are more resolved, and time alignment accuracy is tighter, regardless of your listening position.



With our newly designed AudioCapX-WA copper capacitors, built in-house to industry-leading tolerances, the Mezzo CSC adds unprecedented low-level resolution to your audio journey. This special copper version of the AudioCapX-WA capacitor, integrated into the tweeter crossover, unlocks a new level of high-frequency micro-detail and an open sense of air to your system's sound. Along with refining the crossover topology and linearizing the full frequency response, Mezzo CSC delivers a remarkably life-like and satisfying soundstage.



In the Main Module, Mezzo CSC's two woofers are mounted horizontally, flanking a very familiar midrange driver. First introduced in the Chronosonic XVX, Mezzo CSC features the same 7” Alnico (Aluminum-Nickel-Cobalt) QuadraMag midrange, coupled with an S-Material baffle. With 6% more internal volume for our midrange enclosure, you hear an even more spacious and lifelike midrange sound.
















































Mezzo CSC with Column Stand





Mezzo CSC w







Mezzo CSC with Hourglass Stand



Mezzo CSC with Column Stand



Mezzo CSC with Spikes



Mezzo CSC with Spikes



Mezzo CSC is a work of art that not only sounds extraordinary, but complements your living space with elegance. You can install the Mezzo CSC directly on the ground or raise the loudspeaker height on a purpose-built Wilson Audio Stand.



ith Mezzo CSC with SpikMezzo CSC is a work of art that not only sounds extraordinary, but complements your living space with elegance. You can install the Mezzo CSC directly on the ground or raise the loudspeaker height on a purpose-built Wilson Audio Stand.
