Type

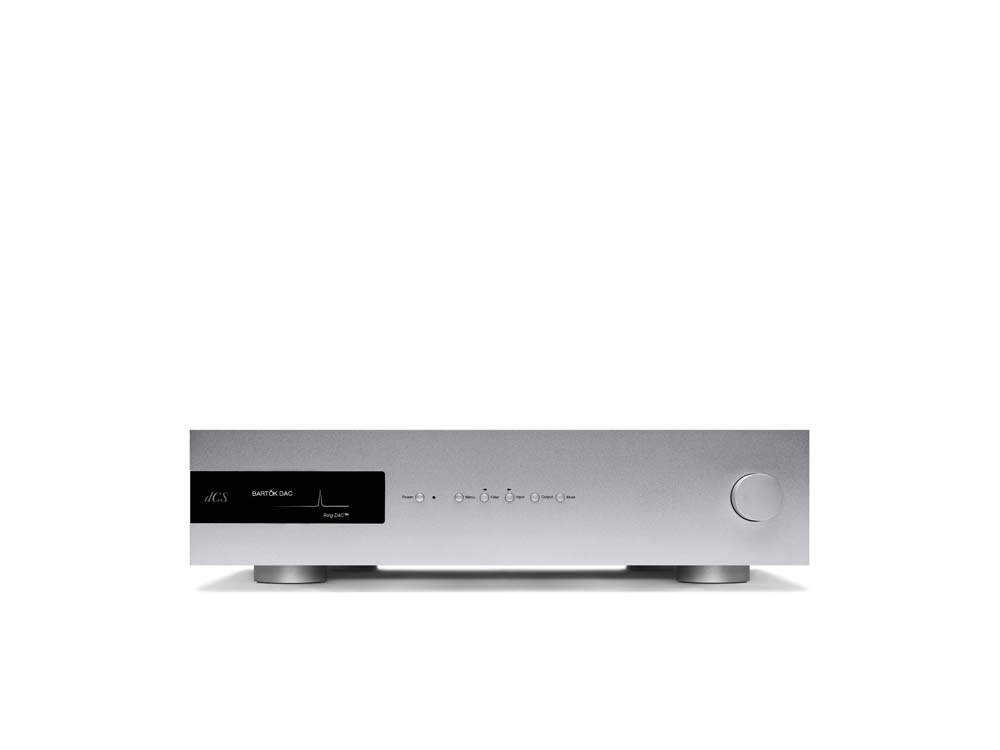

Upsampling Network DAC with Headphone Amplifier
Colour
Silver or Black
Dimensions
444mm / 17.5” x 430mm / 17.0” x 115mm / 4.6“. Allow extra depth for cable connectors.
Weight
16.7kg / 36.8lbs
Converter Type
dCS proprietary Ring DAC™ topology.
Digital Inputs
Network interface on an RJ45 connector – acts as a UPnP™ renderer in Asynchronous mode, streaming digital music from a NAS or local computer over a standard Ethernet network, decoding all major lossless formats including FLAC, WAV & AIFF at up to 24 bit 384kS/s native sample rate, plus DSD/64 & DSD/128 in DFF/DSF format. Other formats include WMA, ALAC, MP3, AAC & OGG. Some formats are limited to lower sample rates. Supports Apple AirPlay at 44.1 or 48kS/s. Network Loop Out connector on a second RJ45 connector. USB 2.0 interface on a B-type connector operating in Asynchronous mode, will accept up to 24 bit PCM at up to 384kS/s plus DSD/64 & DSD/128 in DoP format. Operates in Class 1 or 2 mode. USB-on-the-go interface on type A connector operating in Asynchronous mode, streams digital music from a flash drive at up to 24 bit 384kS/s plus DSD/64. 2x AES/EBU on 3-pin female XLR connectors. Each will accept PCM at up to 24 bit 192kS/s or DSD/128 in DoP format. Used as a Dual AES pair, it will accept PCM at up to 384kS/s, DSD/64 & DSD/128 in DoP format or dCS-encrypted DSD. 2x SPDIF on 1x RCA Phono and 1x BNC connectors. Each will accept PCM at up to 24 bit 192kS/s or DSD/64 in DoP format. 1x SPDIF optical on a Toslink connector will accept PCM at up to 24 bit 96kS/s
Analogue Outputs
Output levels: 0.2, 0.6, 2V or 6V rms for full-scale input, set in the menu. Balanced outputs: 1 stereo pair on 2x 3-pin XLR male connectors. These outputs are electronically balanced and floating. Output impedance is 3Ω, maximum load is 600Ω (10k-100kΩ is recommended). Unbalanced outputs: 1 stereo pair on 2x RCA phono connectors. Output impedance is 52Ω, maximum load is 600Ω (10k-100kΩ is recommended).
Headphone Outputs
1 stereo balanced pair on 1x 4-way male XLR connector. 1 stereo unbalanced pair on 1x 6.35mm (1/4”) 3-pole jack. Full-scale output levels are 1.4W rms into 33Ω, 0.15W rms into 300Ω. Output levels are 0, -10, -20, -30dB, set in the menu. Minimum headphone impedance is 33Ω.
Wordclock I/O worldclock Io
2x Word Clock Inputs on 2x BNC connectors, accept standard word clock at 44.1, 48, 88.2, 96, 176.4 or 192kHz. The data rate can be the same as the clock rate or an exact multiple of the clock rate. Sensitive to TTL levels. Word Clock Output on 1x BNC connector. In Master mode, a TTL-compatible word clock appears on this output.
MQA
Full decoding and rendering of MQA data from the Network and USB2 inputs. Final rendering of unfolded MQA data only from the other inputs.
Residual Noise
24-bit data: Better than –113dB0, 20Hz – 20kHz unweighted. (6V output setting)
L R Crosstalk
Better than -115dB0, 20Hz – 20kHz
Spurious Responses
Better than -105dB0, 20Hz – 20kHz
Filters
PCM mode: up to 6 filters give different trade-offs between the Nyquist image rejection and the phase response. DSD mode: 4 filters progressively reduce out-of-audio band noise level.
Conversions
DXD as standard or optional DSD upsampling
Software Updates
Download and update functionality available via Mosaic App
Local Control
dCS Mosaic app for unit configuration and playback. RS232 interface (controlled by a 3rd party automation system). dCS Universal IR remote control is available as an optional extra.
Power SupplyFactory set to either 100, 115/120, 220 or 230/240V AC 50/60Hz.
Power Consumption
30 Watts typical / 50 Watts maximum.
dCS is proud to introduce our pioneering APEX upgrade to the dCS Bartók from February 7th 2023, representing a new generation for our state-of-the-art DAC, Music Streamer, Upsampler, Pre-amp and Headphone Amplifier system.
Often, innovation comes in the form of software. With the recent Bartók 2.0 software update, we improved DSD upsampling and added new filter options. Mappers originally designed for Vivaldi APEX and Rossini APEX are now available in Bartók. The Mappers control the way in which data is presented to the Ring DAC™ core. Bartòk now includes three Mapper settings. It also includes DSD128 capability and an additional filter setting for DSD.
Additionally, our products feature a modular approach to construction. The design allows for future upgradability, which enables us to offer new hardware to existing owners. Such was the case with the Vivaldi APEX and Rossini APEX. Our obsession with remaining at the forefront of measured and musical performance meant that it was only a matter of time before we developed an APEX upgrade for Bartók owners.
Bartók APEX is a distillation of our past, present, and future—30 years of innovation in a single beautiful, flexible, and futureproof chassis embodying the essence of dCS. Combining a DAC, Music Streamer, Upsampler, Pre-amp, and (optional) Headphone Amplifier, the Bartók APEX offers a singular experience for headphone and stereo listeners. Now with the APEX Ring DAC, our next-generation DAC hardware, we've once again redefined the state-of-the-art for digital audio. This upgrade allows us to take Bartók's world-leading measured performance to a new level—technology that provides an even more immersive musical experience.
