Weight 49lbs / 22.2 kg
Dimensions 18.9 x 15 x 11.1” / 48 x 38 x 28cm
Chassis Machined Aluminum
Colors Nickel, Champagne, Black
Operating Voltage 100V / 115V / 230V / 50-60Hz
Power Consumption (Operation / Standby) 160W / 0.3W
Mains Fuse 2A slow-blow
Electron Tube Complement One Matched Pair Western Electric 300B, 2x ECC81
Phono MM Sensitivity (10W / 4Ω) 0.75mV
Phono MC Sensitivity (10W / 4Ω) 70μV
CD Sensitivity (10W / 4Ω) 0.27V
CD Input Impedance 20 kOhms
Phono MM Input Impedance 47 kOhms | | 100 pF
Phono MC Input Impedance 1000 kOhms (adjust via Phono Load plugs)
SNR MM (10W / 4Ω, input 5mV) 83 dB(A)
SNR MC (10W / 4Ω, input 0.5mV) 73 dB(A)
SNR CD (10W / 4Ω, input 0.5V) 101 dB(A)
CD Frequency Response 15 Hz - 32 kHz (-3 dB)
Phono Frequency Response 30 Hz - 20 kHz (RIAA within +/- 0.5 dB)
Output Power / 4 Ω / THD 10% 2 x 20 watts
Output Power / 4 Ω / THD 5% 2 x 16 watts
Output Power / 4 Ω / THD 3% 2 x 14 watts
Output Power / 8 Ω / THD 10% 2 x 20 watts
Output Power / 8 Ω / THD 5% 2 x 16 watts
Output Power / 8 Ω / THD 3% 2 x 14 watts
BT Standard v4.2
BT Codecs BC, MP3, AAC, Fastream, APTX
BT Sample Rate (adaptive) Up to 96kHz / 16-bit
BT frequency response 20 Hz - 20 kHz
BT SNR 96dB

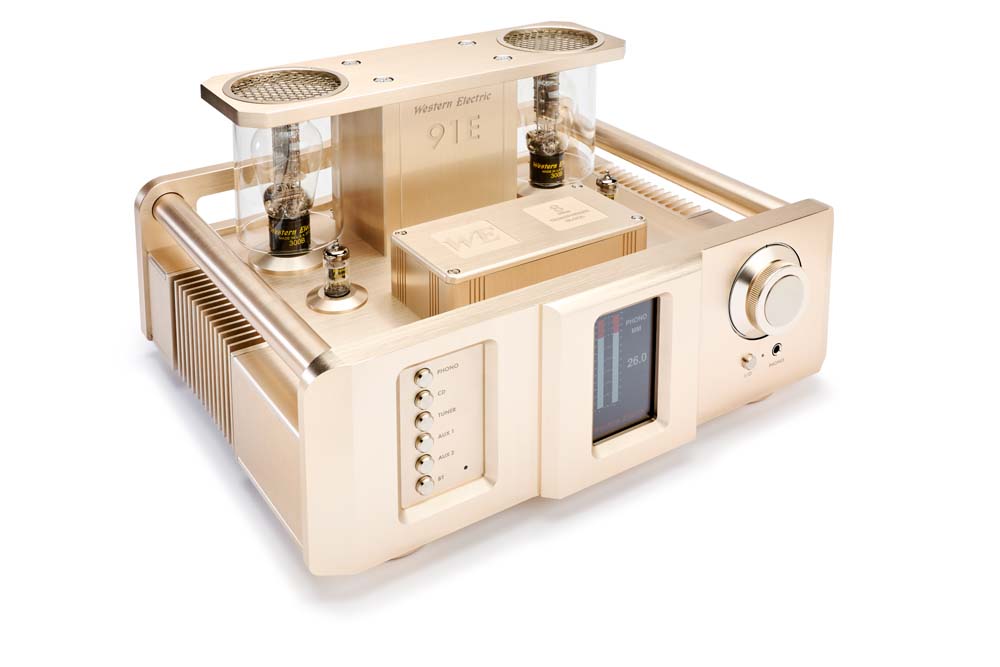

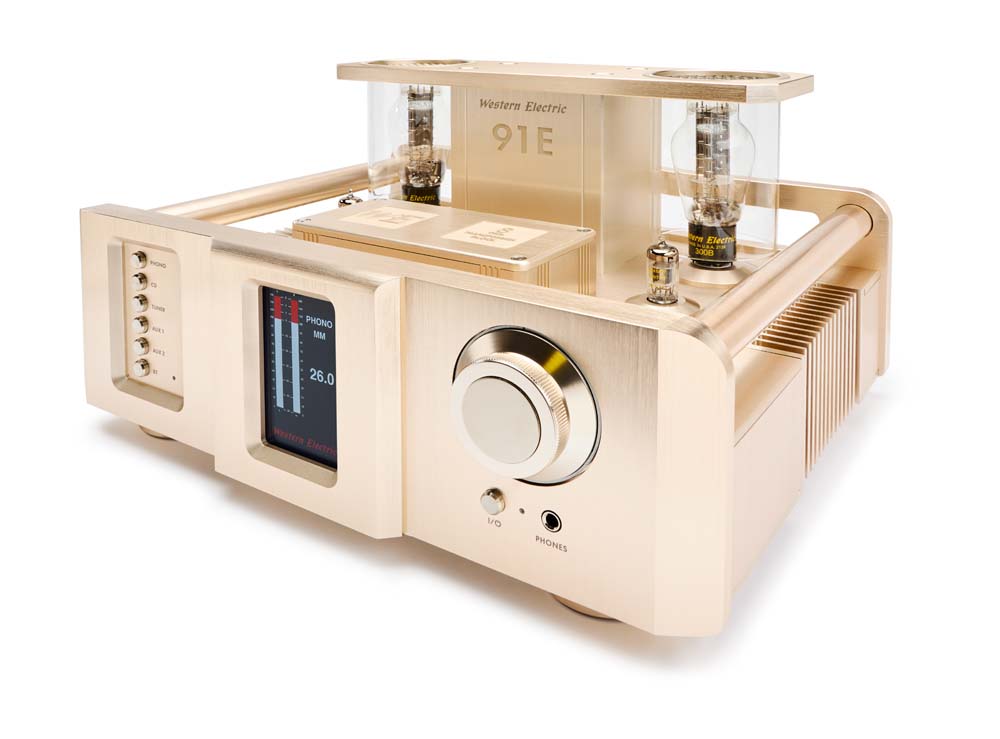

Introducing Western Electric flagship integrated amplifier. The 91E is the latest advancement in single-ended sound, energized by its famous predecessor the WE 91A.
At double the power, you’ve never heard the 300B express itself like this before. A new level of performance has been achieved with a completely new approach to SE amplifier design. The 91E’s circuitry intelligently steers the parallel feed constant current source (SCCS), allowing the tubes to deliver more than double their previously rated output of 7-8 watts.
