Class of operation:
Push Pull class A
Tubes: 1x 6N30P and 1x ECC88 per channel
Input voltage: 230V/50Hz- 115V/60Hz selectable
Power consumption: 60VA
Headphone Output impedance: 25 – 50 -100 – 300 and 600ohms
Output impedance as preamplifier:RCA outs – 6 ohms, XLR outs– 25 ohms
Gain: 26 dB
Maximum output power on headphone output: 2W into 50 ohms
THD at 0.5W/1kHz: 0.2%
Outputs as line preamplifier: XLR + RCA
Output for headphones: Neutrik 4 pins balanced connector + ¼” connector
Inputs: XLR + RCA
Input sensitivity: 0.5Veff – Input impedance: 47Kohm
Frequency bandwidth: headphone and line out 10Hz (-1dB) – 80KHz (-3dB)
S/N: 88dB
Weight 10 kg
Dimensions 400 x 310 x 100 mm

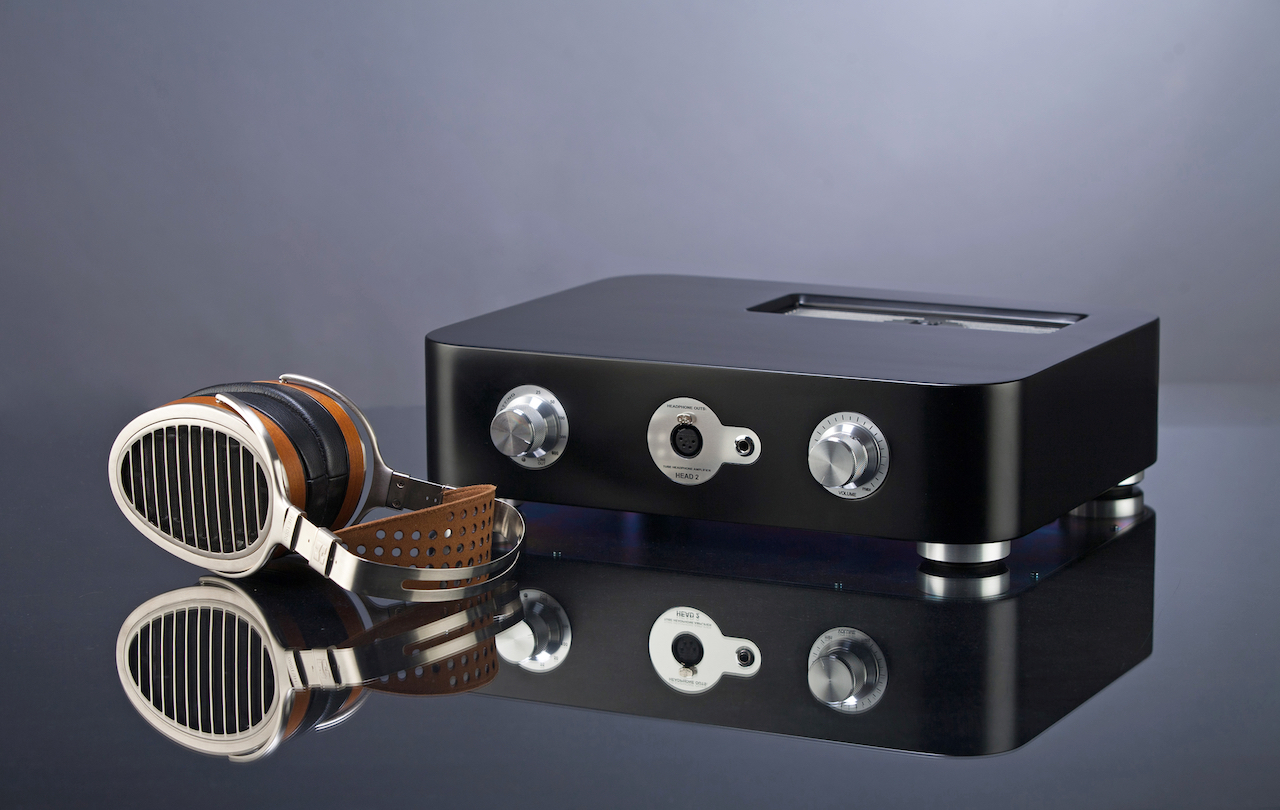

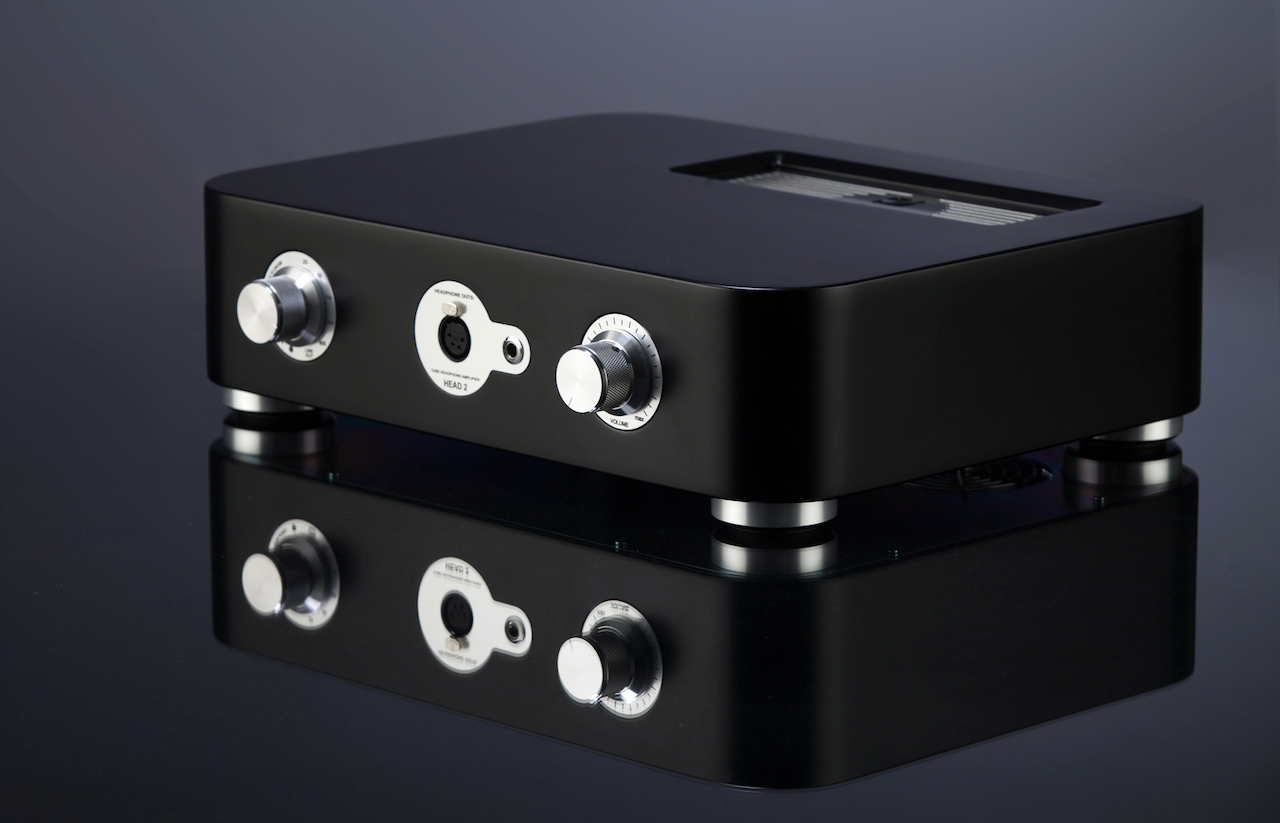

The Head 2 is a Class-A Push Pull circuit design . This is the second headphone amplifier in Trafomatic Audio production coming after very sucefull model Experience Head One. 3dB of feedback and 100% tube amplification delivery 2W into 50 Ohms .It’s tubes have been hand-picked based on their long established reputations for sonic virtue.
The ‘overbuilt’ power supply features robust multi-stage high-voltage ltering, for superior low-frequency performance.
A proprietary output stage with II C core output transformers accommodates a wide range of headphone impedance from 25-600 Ohms.
The Head 2 drives many types of headphones with no sacrice to delity and with ease This is the ideal amp for shared listening sessions. The Head 2 also working as great tube preamplifier capable to drive all power amplifier even with very low input impedance.
The Head 2 features uncompromising quality in build and design throughout.
A timeless design built to last a lifetime and deliver an unmatched sonic.
