NAME :

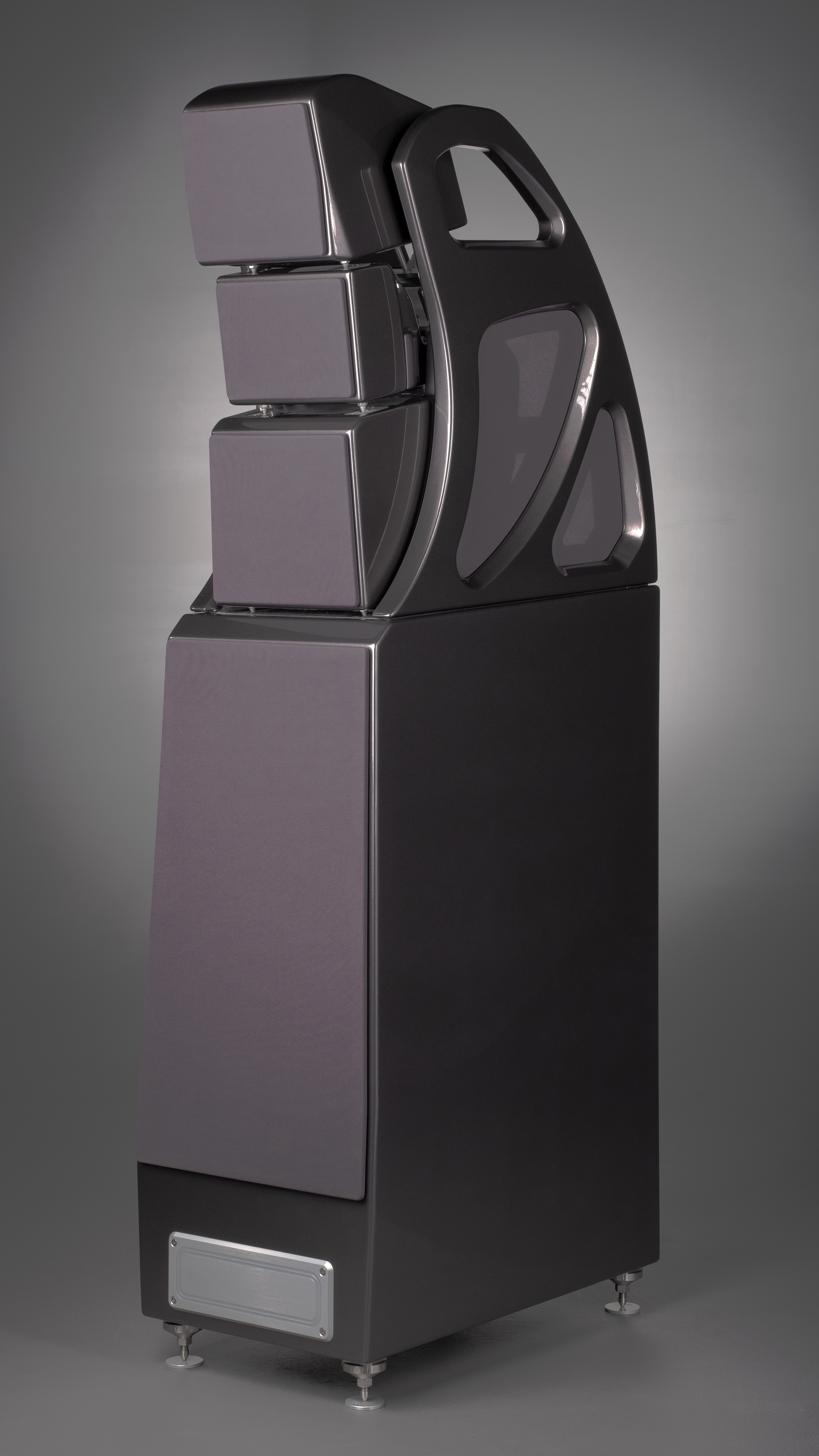

 Alexx V

PRODUCT IMAGE :

Click On Main Image for Larger View

MANUFACTURER :

Wilson Audio

SPECIFICATIONS :

  • Materials
    Proprietary "V-Material” & Austenitic Stainless Steel
  • Dimensions
    Height = 2 1/32" – 2 17/32” (5.16 cm - 6.43 cm)
    Diameter = 2 5/16" (5.87 cm)
  • Weight Per Unit
    12 oz (0.34 kg)
    8 Units / Box
  • Available Thread Sizes
    Standard
    1/2"-13
    Additional Sizes Available Upon Request:
    3/8"-16
    5/16"-18
    1/4"-20
    M6
    M8
    M10
    M12
    M14

MANUAL:

BROCHURE:

BRIEF DESCRIPTION :

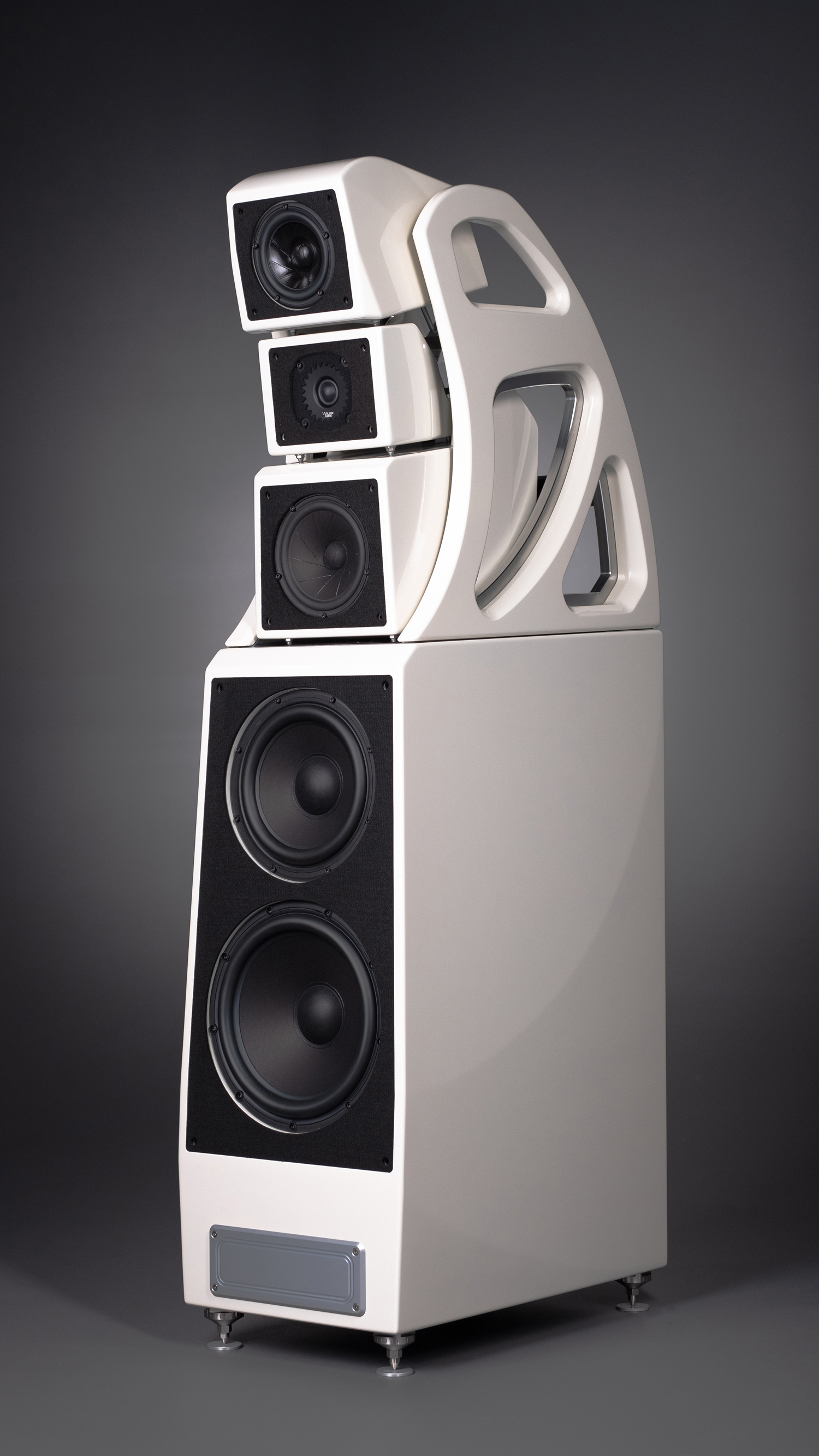

Alexx V is an extraordinarily adaptable design. Carrying over elements from its larger siblings, such as the XLF reversible woofer port and independently adjustable modules, allow this system to be elegantly tailored to your listening room. These tools built into the DNA of Alexx V allow for greater ease of installation into a wider variety of listening spaces, thus permitting the listener to truly experience the depth and ability of this system.

DESCRIPTION :

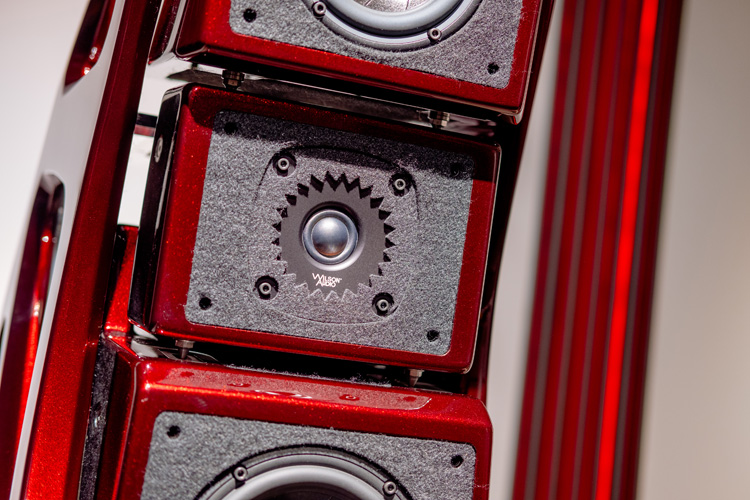

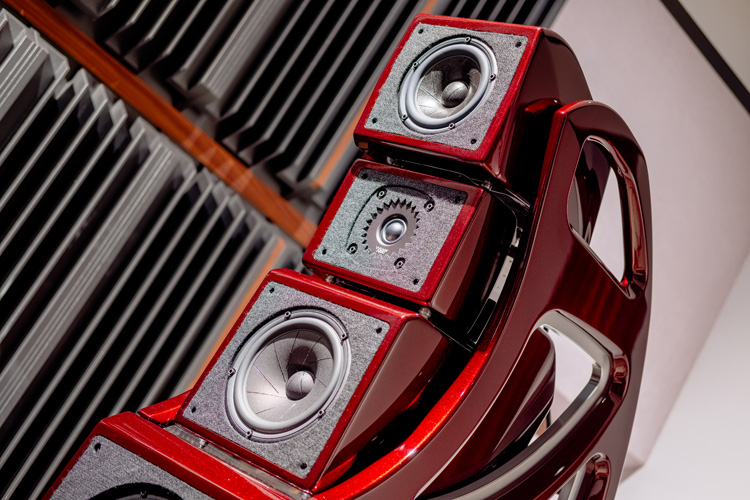

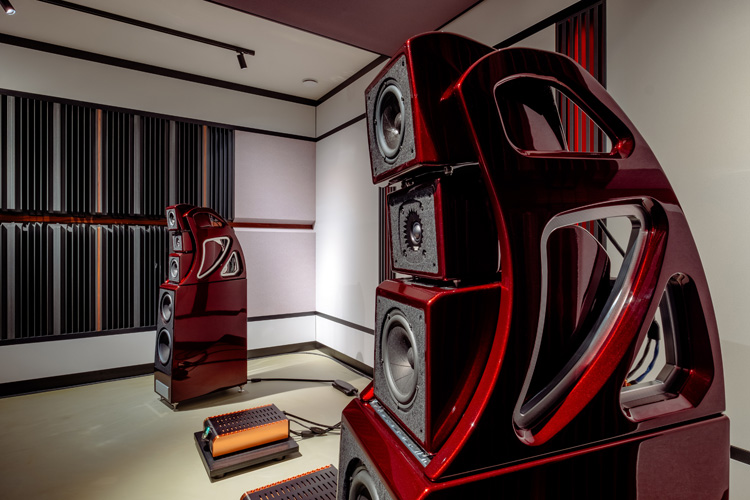

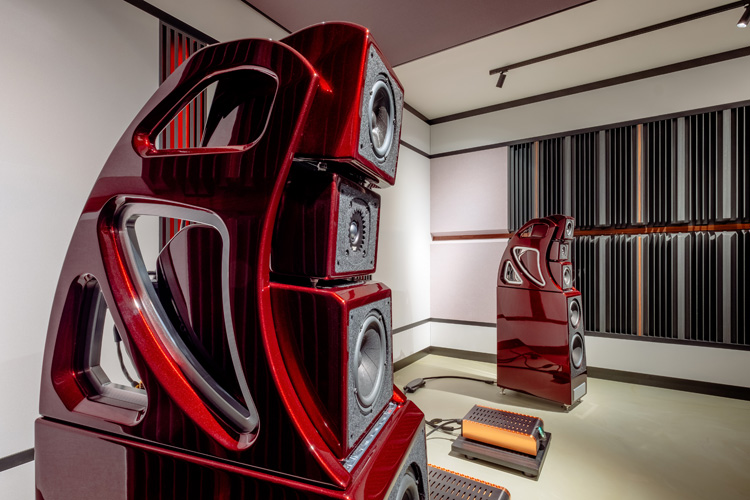

The open architecture gantry first launched with WAMM Master Chronosonic, followed by Chronosonic XVX, has now found a home with Alexx V. Not only does this benefit the overall appearance of the loudspeaker, but critically, it also enhances the overall rigidity of the entire upper module section and minimizes pressure trapped behind the enclosures, resulting in greater fidelity. Easier access to the upper modules makes for quicker adjustments. Similar to our innovative lighting solution (Sono 1™ from Coolfall®) featured in Chronosonic XVX, Alexx V has an illuminated cross brace at the rear of the gantry, which aids in speaker module setup and time-alignment fine-tuning.



Building upon the research and development of Pedestal, the Special Applications Engineering Team is excited to announce the Wilson Audio Acoustic Diode™ (AD Spike for short). At the heart of the Acoustic Diode is our proprietary “V-Material.” This superior constrained layer damping composite is unsurpassed in vibration absorption and resonance control.








Energy from the enclosure migrates into the V-Material where it is faced with the effective damping properties of this efficient material. The mass of the loudspeaker concentrated onto the very small ends of the spike tips results in significant levels of PSI that prevent detrimental vibrations from traveling upward into the footer. Those vibrations that do travel up the spike are absorbed by the mass of the Acoustic Diode and have to travel through the V-Material to have a chance to influence the enclosure.



Keeping the spike and threaded post separate prevent a direct path for vibrations to travel, or interplay, and are therefore dissipated and absorbed in either the V-Material or the footer housing. This distinctive design, combined with advanced vibration-mitigating materials, provides the best of both worlds; a solid base from which the drivers can launch as well as preventing the transmission of energy from the floor to the loudspeakers.
