Technical Specifications:
Power output: 220 watts RMS / 8 ohms
350 watts RMS / 4 ohmsv Input gain, line: 0 to +22 dB, user defined
Input gain, MM: 24 to 44 dB, user defined
Input gain, MC: 50 to 70 dB, user defined
Input sensitivity: Line 250 mV, Phono 0.5 mV
Frequency response: 10 Hz to 100 kHz, ± 0.5 dB
Total Harmonic Distortion: less than 1 % at any frequency
Temporal Distortion: None across full audio range
Crosstalk: less than -90 dB from 20 Hz to 20 kHz
Signal to noise ratio: > 100 dB (A), line, @ 2 volts output
Greater than 70 dB (A), phono, @ 2 volts output
Power consumption: Idle 45 watts, maximum 1000 watts.
Standby: less than 5 watts.
Size in mm (WxDxH): 440 x 335 x 170; 415 mm total deep with handles.
Net weight: 29 kg (approximate)

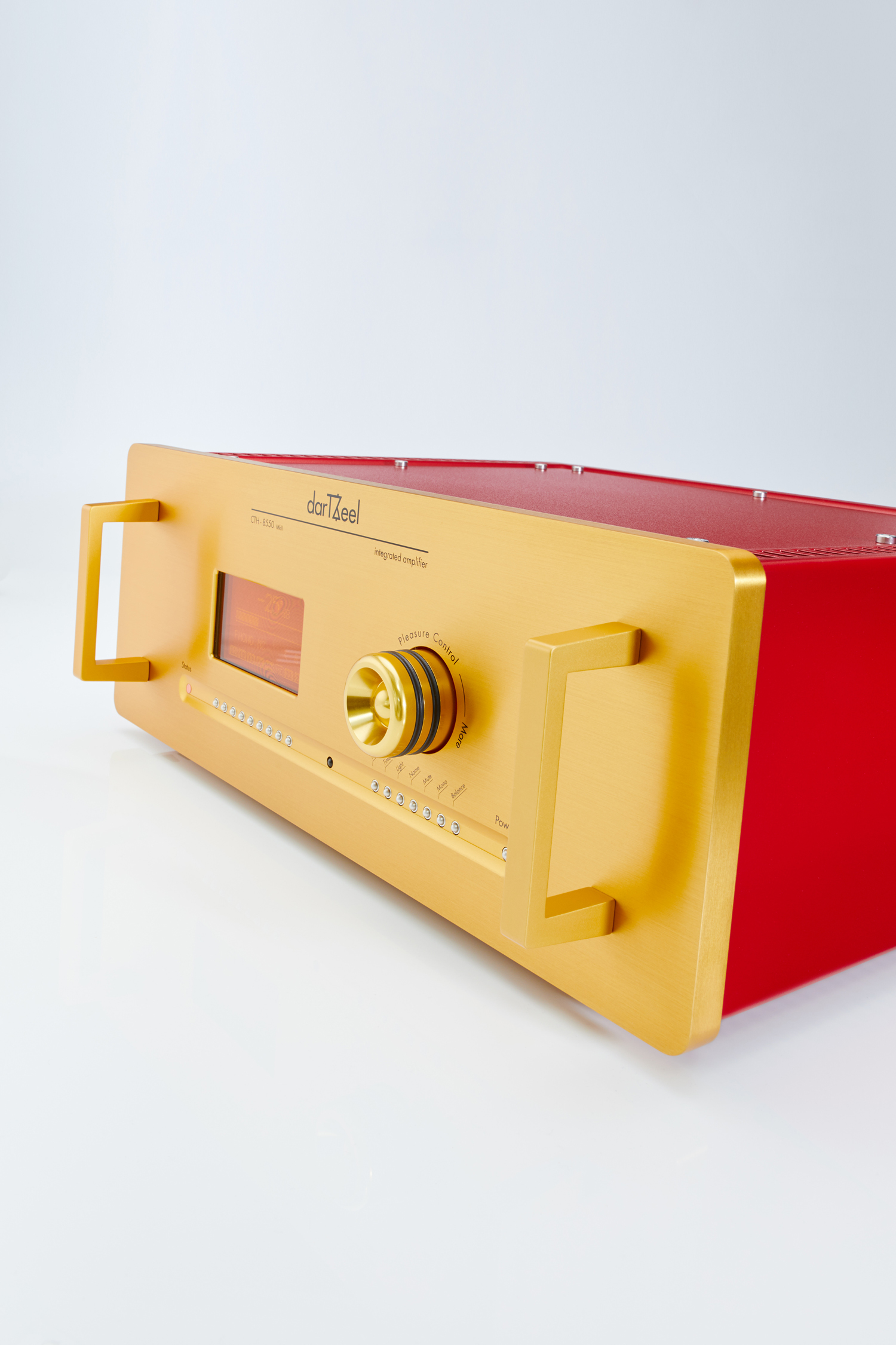

Dartzeel CTH 8550 MKII
darTZeel is proud to introduce the new CTH-8550 full featured integrated amplifier. This new product combines in one casing most of the good things musical lovers found in our flagship NHB series.
The CTH-8550 features newly designed power output stages which include on board regulated power supplies for a very compact global layout. This new circuit brings outstanding transparency, speed, yet delicacy, giving a maximum listening pleasure.
With no less than nine inputs in total, the preamplifier section is dual-mono - one dedicated circuit per channel - with a minimal footprint which allows for very short signal paths. No doubt that this newcomer is a true darTZeel machine.
