Thalie Tonearm Specification
Type : unipivot on silicon gel,
Total lenght 385 mm
Effective lenght 308,60 mm (12”) Distance : pivot ó center of the disc 295,60 mm Offset angle 18,5°
VTA adjustment 0 à 10 mm Mobile weight 1150 g Offset angle (Cartridge) 17,3°
Overhang 13,2 mm
Tracking error : Inside :
Outside: R 66 R 121
Weight adjustment* 0,5 / 5g
Effective weight * Adjustable from 19 g to ≥50 g
Internal wire : Cardas 4 x 33 AWG, OFC copper, unshielded with deep cryogenic treatment

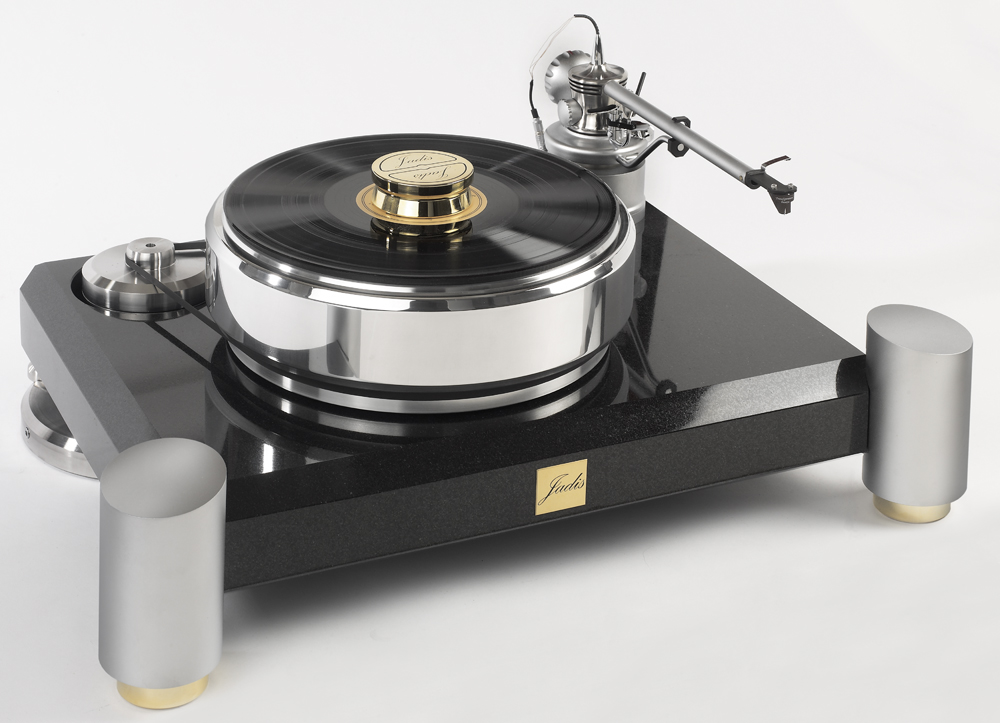

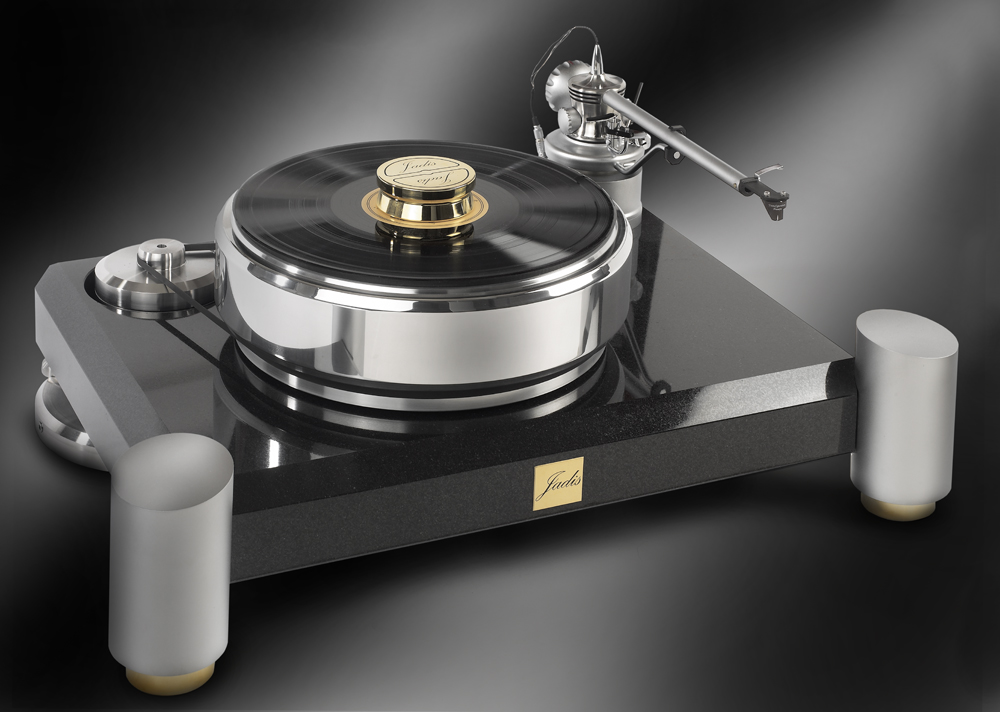

Jadis Thalie
The Thalie comes from an artistic activity and not an industrial one.
This turntable is build with the minimum amount of parts; each of it has a clearly defined role and is fully optimized to perform perfectly the purpose it was designed to fulfill. The Thalie was designed with tree main objectives:
1: Perfect reliability.
2: To reach the best sound quality.
3: To have the audience dream...
All choices for the development of the Thalie were guided in order to fulfill these three objectives.
Only four rotating mechanical parts: the motor, the pulley, the tray on its axis and the bearing. The reduced number of mechanical parts and the overall simplicity of the whole unit give an excellent reliability.
Also in order to ensure maximum reliability, the dragging is done by a synchronous motor. Thanks to it, no electronic speed control is required. On the Thalie this control is completely mechanical and is regulated by the electrical network frequency which is very stable.

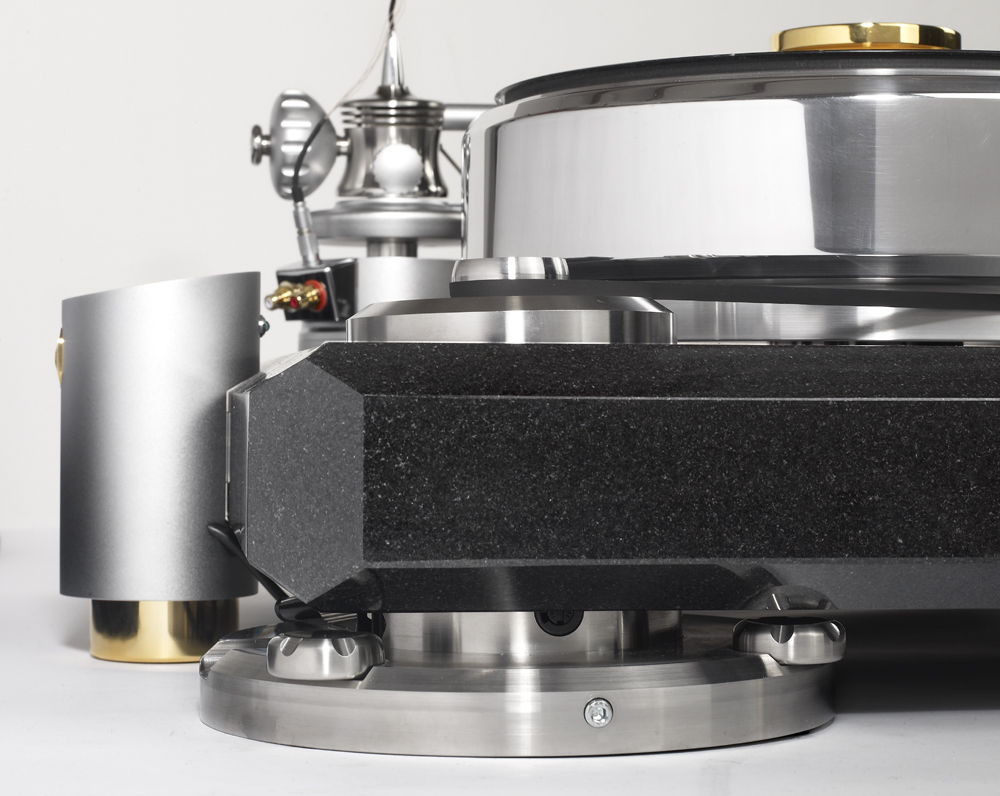

Heavy building with its granite pedestal which weight 50Kg and 20Kg for the platter, both are cut and machined to provide maximum protection against resonances that may interfere the musical restitution.
The parts machining is carried out with a tolerance of about a micron, which is the dimension of the grooves of a vinyl record. This extremely meticulous precision allows the Thalie to get all the information deep into the grooves and thus provides perfect sound reproduction.
