Martin Logan


Frequency Response:
24–23,000 Hz ± 3dB

Horizontal Dispersion:
30 degrees

Vertical Dispersion:
44" (112cm) line source
92 dB/2.83 volts/meter
4 ohms, 0.7 at 20kHz

Crossover Frequency:
270 Hz
Custom-wound audio transformer, air core coils, polypropylene capacitors
Woofer Type:
Two 10" (25.4cm) (per channel) cast basket, high excursion, aluminum cone with extended throw drive assembly, non-resonance asymmetrical chamber format
Woofer Amp Power:
2 × 200 watts/channel (4 ohms)
Bass Control:
±10dB at 25 and 50 Hz
Other Control:

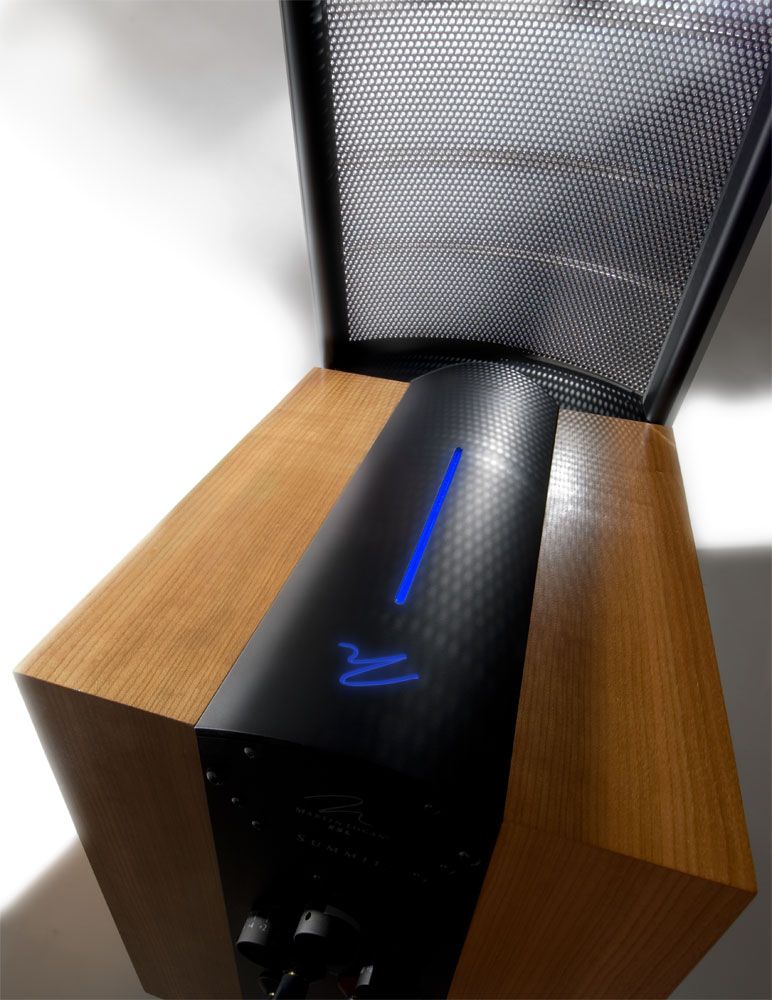

Light intensity dimmer control
Power Handling:
300 watts per channel
Signal Inputs:
Custom bi-wire binding posts
Mains Power Draw:
Idle: 20W/channel
Max: 350W/channel
75 lbs./channel (34 kg)
Dimensions (HxWxD):
59" × 12.5" × 20.5" (150 × 32 × 52 cm)

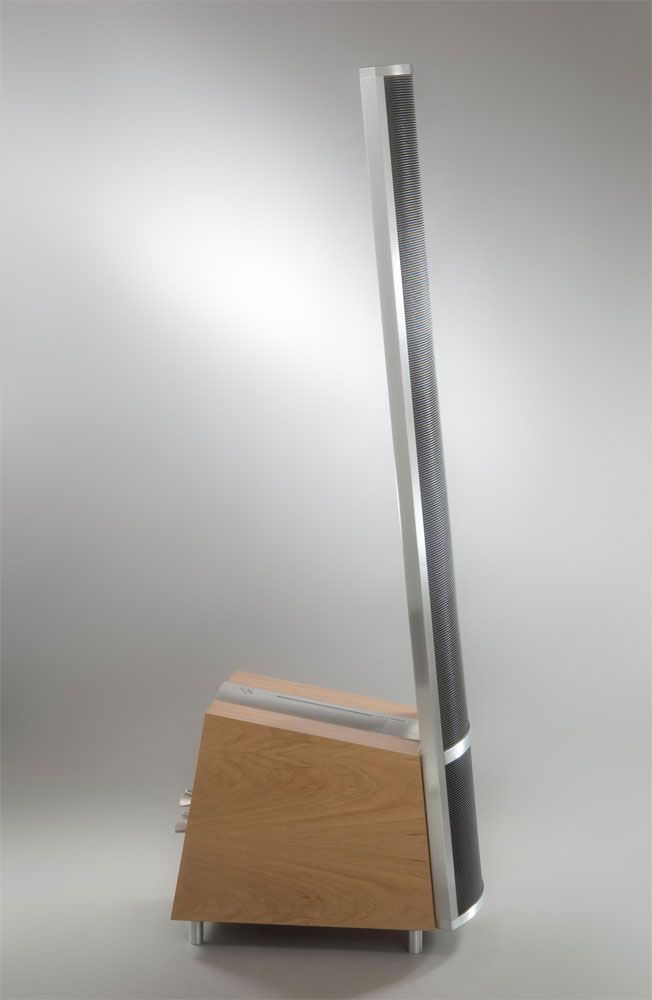

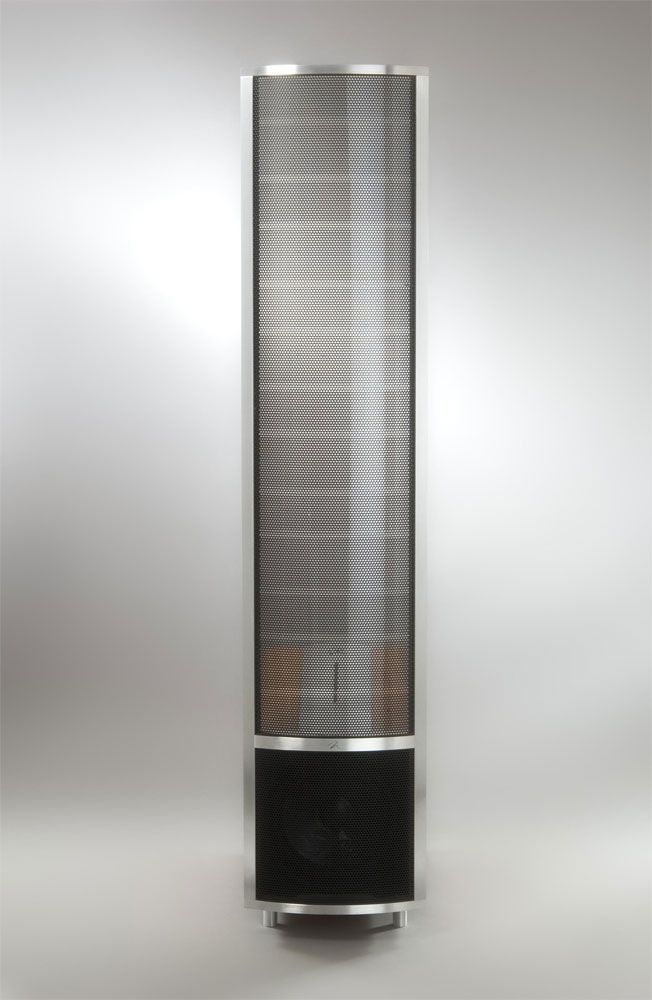

Hybrid Electrostatic Loudspeakers


The Summit™ is our most advanced and sophisticated full-range loudspeaker, taking technology developed through years of painstaking MartinLogan research to the limit. Its breakthrough XStat™ electrostatic panel and PoweredForce™ woofer section allow a dramatic reduction in bulk while establishing new standards for efficiency, precision, and dynamics in a floorstanding speaker.

Key to the Summit's revolutionary performance is our advanced XStat™ electrostatic panel, which covers most of the audible range, from the midrange to beyond the limit of human hearing, with unprecedented accuracy. A perfectly integrated PoweredForce™ woofer section – the most advanced woofer technology available in a full-range speaker – supplies an authoritative bass foundation from its twin 10-inch aluminum-cone drivers, effortlessly extending the Summit's response to frequencies below where even most subwoofers reach. Yet the Summit never, ever sounds heavy.

Nor does it look heavy. In fact, it almost seems to float in the air. We believe you'll agree that the Summit looks nearly as good as it sounds – maybe because the way it looks is actually sort of like the way it sounds.

MartinLogan electrostats are a special breed of speaker, and the Summit is the most special of them all. Hearing is believing.

XStat™ Transducer
Advanced MicroPerf stator technology gives MartinLogan's latest-generation CLS™ electrostatic transducer almost twice as much exposed diaphragm surface as a traditional electrostatic panel of the same size. This dramatic increase in effective radiating area translates to higher efficiency and an even more effortless, unlimited dynamic presentation. The XStat pulls no punches!

But there's more to it than just putting more holes in the stators, which must maintain uniform spacing in front of and behind the diaphragm to exacting tolerances. They cannot flex. XStat's ultra-rigid aluminum AirFrame™ firmly anchors the transducer's working elements – stators and diaphragm – around their periphery, while ClearSpar™ spacers stiffen the assembly further across its width. ClearSpars enable precise, consistent tensioning of the Vacuum Bonded diaphragm without obstructing the floating, see-through look that is the visual hallmark of MartinLogan electrostats.

In the end, a speaker cannot outperform the signal feeding it. MartinLogan's state-of-the-art toroidal transformer and electrical interface engineering ensure an absolutely transparent link from amplifier to electrostatic panel. The result is sound of unparalleled purity, precision, clarity, and openness – the next best thing to no speaker at all.

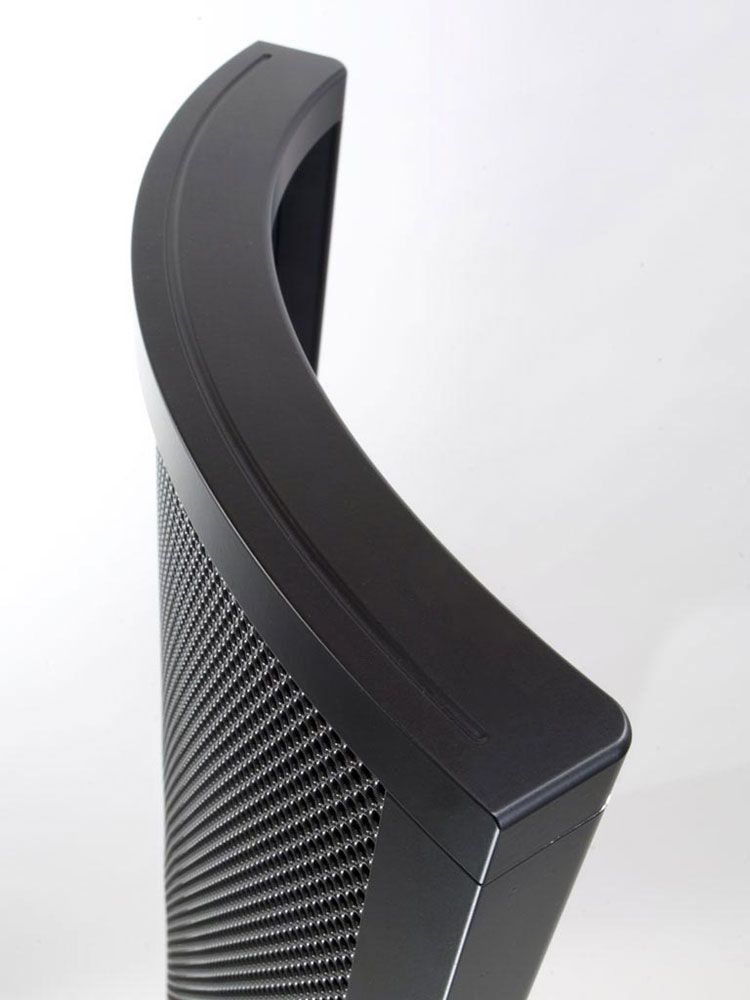

AirFrame™ Technology
XStat™ panels are secured to speaker cabinets using MartinLogan's AirFrame technology. AirFrames, manufactured from aerospace-grade billet and extruded aluminum alloy, make the panels extremely rigid without obstructing playable surface area or interfering with their dipole sound radiation. At the same time, they provide electrical and acoustical isolation, minimizing intermodulation distortion caused by vibration and resonance. Overall, AirFrames enhance imaging, low-level sonic detail, accuracy, and efficiency.
Vacuum Bonding
The components of each XStat™ panel – two insulated, high-purity carbon steel stators, plasma-deposited PET diaphragm, and ClearSpar™ spacers – are fused into a cylindrical-section geometry with an aerospace adhesive whose hold strength exceeds that of welding. Our proprietary Vacuum Bonding process ensures uniform diaphragm tensioning and facilitates the extremely tight tolerances necessary for construction of such a precision transducer.
Curvilinear Line Source Electrostatic Panel
One of MartinLogan's original breakthroughs, CLS™ technology has been an essential ingredient of every electrostatic loudspeaker we've produced. Proprietary manufacturing methods enable construction of electrostatic panels as cylindrical sections. Their gentle horizontal curvature solves the problem of obtaining good high-frequency dispersion from a large radiating surface without compromising overall sound quality or reliability.
PoweredForce™ Bass
MartinLogan PoweredForce woofers feature advanced driver and amplification technologies that deliver astonishingly dynamic and articulate bass to as low as 24 Hz from enclosures only about the size of a case of wine. Integrated low-frequency equalization further enhances performance by allowing precise tailoring to individual room acoustics.
Low-Distortion Aluminum-Cone Woofers

By eliminating cone flexure, aluminum diaphragms help our advanced-technology woofers achieve the very low distortion necessary for proper blending with MartinLogan electrostatic panels.
MicroPerf™ Stators
Although stators are the elements of an electrostatic driver that are supposed to stand still, they carry the audio signals that do the work of propelling the diaphragm back and forth to move air and produce sound. Because the stators sandwich the diaphragm between them, they must be perforated to allow sound to pass through. Yet they must also be rigid enough to remain absolutely stationary despite the strong electrostatic forces pushing and pulling at them during operation.

MartinLogan's MicroPerf design optimizes this tradeoff by reducing the size of the individual holes and using many more of them than in a traditional electrostatic panel. MicroPerf almost doubles effective diaphragm radiating area without compromising structural integrity. The resulting increase in output capability and efficiency allows a panel to be made much smaller without sacrificing performance – or to enjoy a substantial leap in bandwidth and dynamics without growing larger.
Vojtko™ Crossover
Carefully hand-built using only the finest polypropylene capacitors and air-core coils, the crossover employ's MartinLogan's proprietary Vojtko topology for vanishingly low distortion and seamless driver integration. This precision-tuned network preserves even the most microscopic sonic nuances while handling the full dynamics of any source.

Portless Enclosure
Although ports are a convenient and cost-effective way of increasing low-frequency output, they rely on resonant energy in a way that impairs bass quality. A good sealed system will exhibit less transient-blurring group delay while maintaining smooth, consistent response regardless of output level or voice-coil temperature. Listen carefully to the sound of a bass drum, and you'll hear the difference.

Dipole Sound Radiation
The sound we hear from a loudspeaker is a combination of direct radiation from it to our ears and reflections off of room surfaces – walls, floor, and ceiling. How our brains integrate all this information is far from simple. Depending on the angle of incidence to the ears and the arrival-time difference between direct and reflected sound, reflections can either blur detail and stereo imaging or enhance the natural impression of depth and openness.

True dipole speakers, such as electrostatic panels, have long been noted for their near-ideal radiation patterns. They send very little sound to the sides, thereby minimizing side-wall reflections with short arrival times that tend to interfere with perception of the direct sound. Their strong rear radiation, however, produces a generous amount of ambience-enriching later-arriving reflections off the wall behind them.

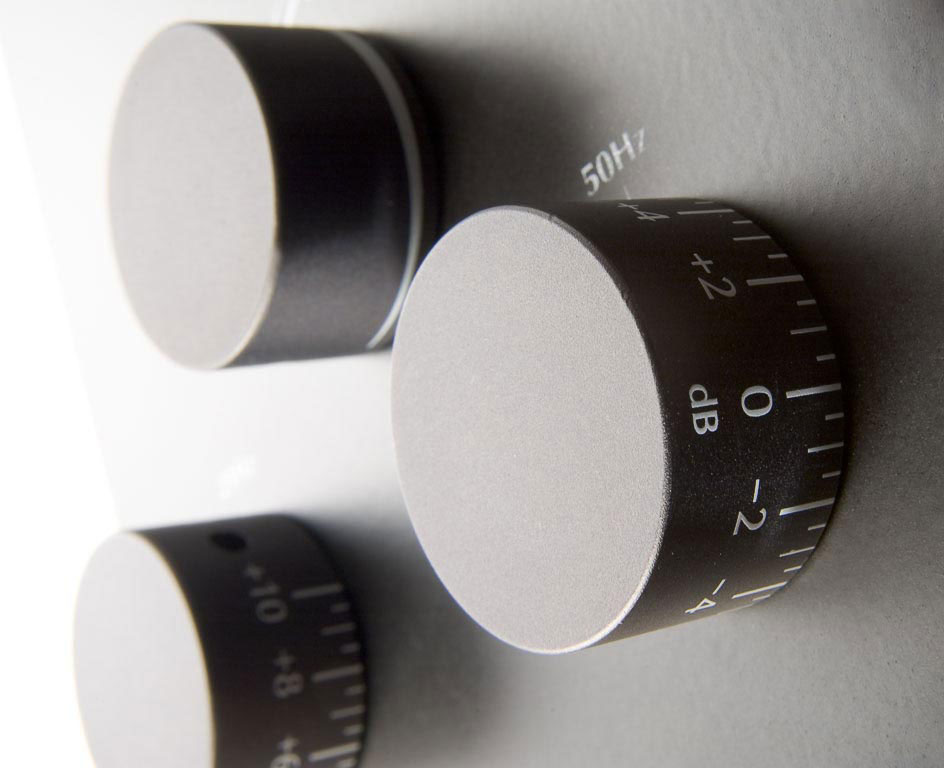

25- and 50-Hz Level Controls
Summit's PoweredForce™ active woofer system enables fine-tuning of the speaker's output in the frequency ranges most commonly and severely affected by room acoustics. The result is bass that is not just deep and powerful, but also smooth, clean, and detailed.

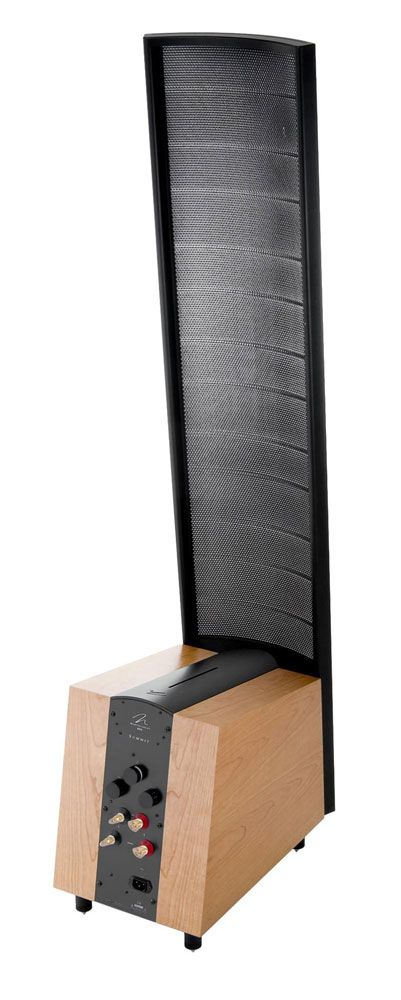

Bi-wirable Toolless Binding Posts
MartinLogan's proprietary toolless binding posts make cable connection and management easy. Two sets are supplied, one connected to the crossover section feeding the electrostatic panel, the other to the section feeding the woofer. When the two are linked using the supplied straps, a conventional single-cable connection can be used. Or you can remove the straps for bi-wiring.

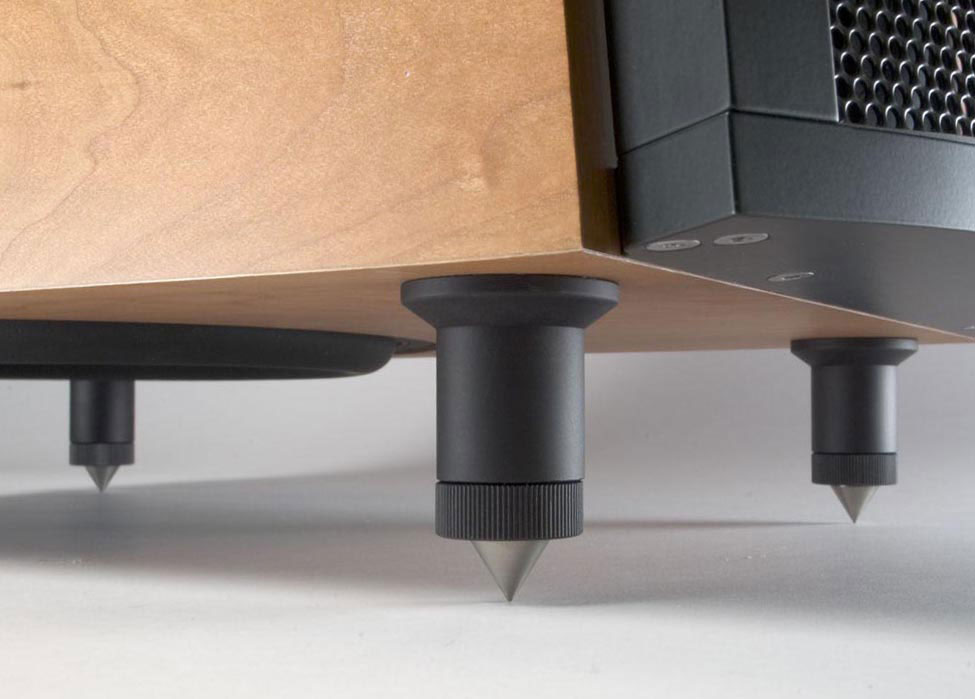

Custom Feet and Energy Transfer Coupler Spikes
The Summit is supplied with sturdy, custom milled three-inch tall feet held in place by an ample 3/8-16 threaded insert. Discretely hidden within each foot is an ETC™ spikes, which can be used in place of the standard feet to enhance stability on thick carpets or to create tighter coupling between speaker and floor.

Finish Options
Available in a variety of aluminum and hand-rubbed wood finishes, MartinLogan Summit™ loudspeakers can be personalized to match any decor.
