NAME :

 Chorus 7

PRODUCT IMAGE :

Click On Main Image for Larger View

MANUFACTURER :

Krell

SPECIFICATIONS :

7 Channel Amplifier

200 Watts into 8 Ohms

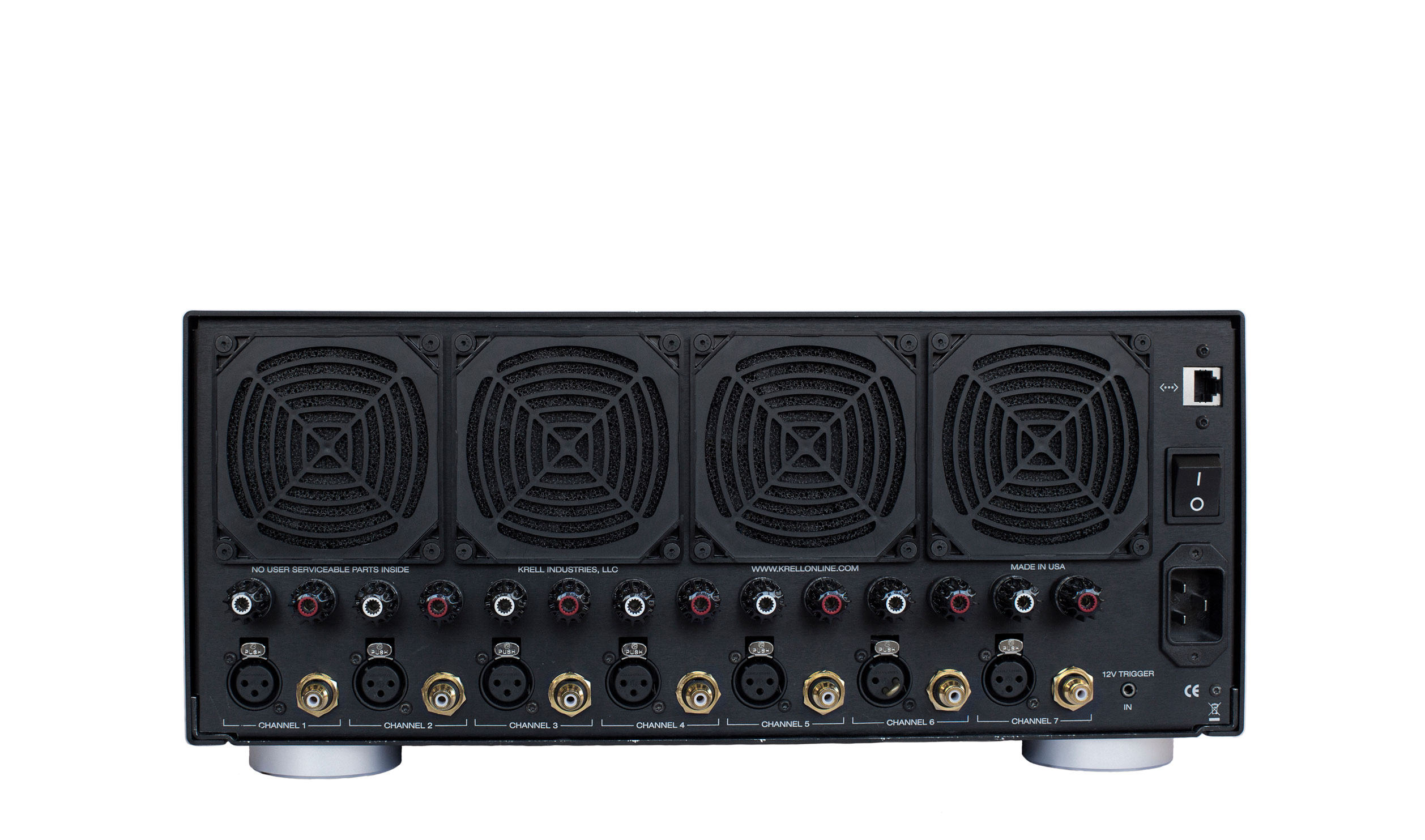

5 ea - Single-ended RCA and Balanced XLR Inputs 1

RJ 45 Ethernet Port 1

12V Trigger Input WBT Speaker Binding Posts Optional Rack Mount Kit

Weight: 70 lbs, 32kg

MANUAL:

BROCHURE:

BRIEF DESCRIPTION :

Chorus 7200 7 Channel Power Amplifier 200 Watt Amplifier Featuring Krell iBias Technology Krell iBias Class A amplifiers are the first to deliver the rich musicality of Class A amplifiers, the uncompromised dynamics of classic Krell amplifiers, and the efficiency and low power consumption of Class G and H amplifiers.CHORUS 7200 7 Channel Power Amplifier 200 Watt Amplifier Featuring Krell iBias Technology Krell iBias Class A amplifiers are the first to deliver the rich musicality of Class A amplifiers, the uncompromised dynamics of classic Krell amplifiers, and the efficiency and low power consumption of Class G and H amplifiers..

DESCRIPTION :


This design gives the Krell amplifiers lower internal impedance, which allows firmer, more precise control of your speakers. Krell CAST Circuitry delivers the purest signal when connected to Krell CAST equipped preamplifiers. Power Supply Highlights One 750VA toroidal transformer feeds amplifier modules that include the audio circuitry, rectifier, and power supply filtering mounted to an individual heat sink. This design shortens the electrical path from the power supply to the output transistors, reducing the overall impedance and allowing the circuit to respond faster and control the speakers better and more accurately Feature Highlights Network connectivity brings convenience, monitoring, and reporting to end users from any smartphone, tablet, or laptop.



Amplifier configuration options include display brightness and timeout. For energy conservation, the amplifiers can be programmed to power off at a preset time of inactivity. Individual channels can be muted and firmware updates can be initiated from the web server. Excessive current, output DC, fan speeds, short circuit, and overheating are all monitored in real time. Messages are displayed on the front panel and reported on the web server interface. Additionally. end users can be sent an email notifying them of any operational anomalies.
