Product Search Result

NAME :

 S5

PRODUCT IMAGE :

Click On Main Image for Larger View

MANUFACTURER :

Magico Premium

SPECIFICATIONS :

Driver Complement:
1 x 1" MB30 Tweeter
1 x 6" M380 Midrange
2 x 10" Hybrid Nano-Tec Bass
Sensitivity: 90dB
Impedance: 4 Ohms
Frequency Response: 22 Hz - 50 kHz
Recommended Power: 50 - 1200 Watts
Dimensions: 48"H x 14"D x 15"W (122cm x 35cm x 38cm)
Weight: 190 lbs. (86 kg)

MANUAL:

BROCHURE:

BRIEF DESCRIPTION :

After its stunning reception at the High End Show in Munich several weeks ago, the Magico S5  Lands in UK , the 1st in new S class range What’s better than listening in your home to top quality music? The Magico S5 loudspeaker is a thing of beauty that moves you while drawing out  fabulous sounds.



DESCRIPTION :

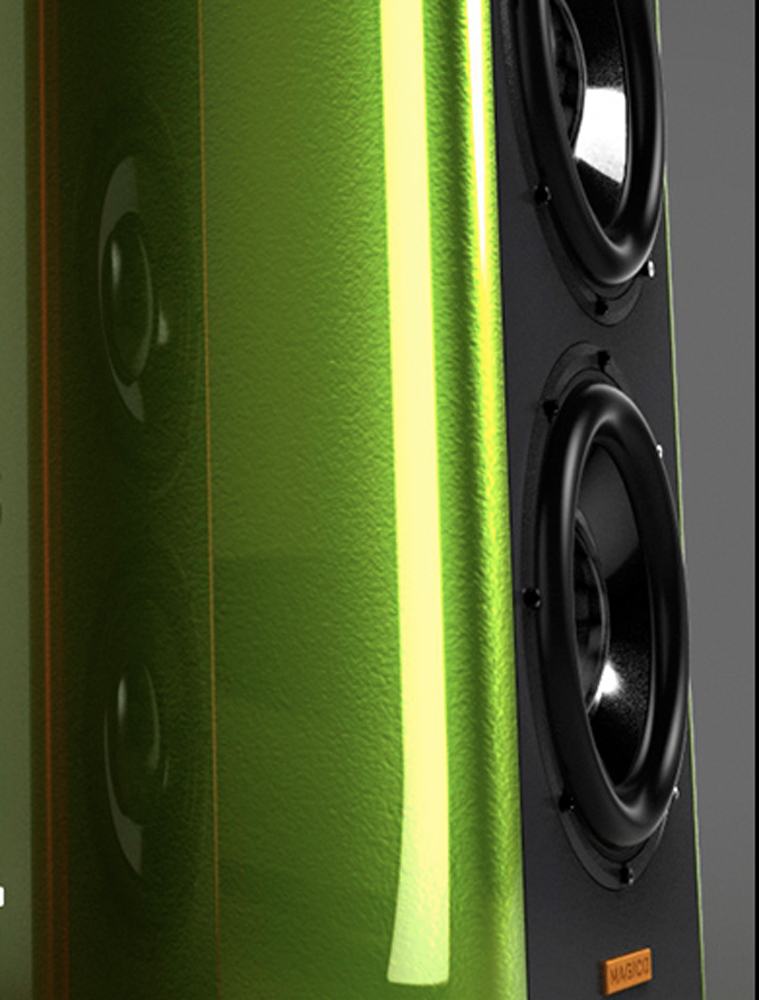

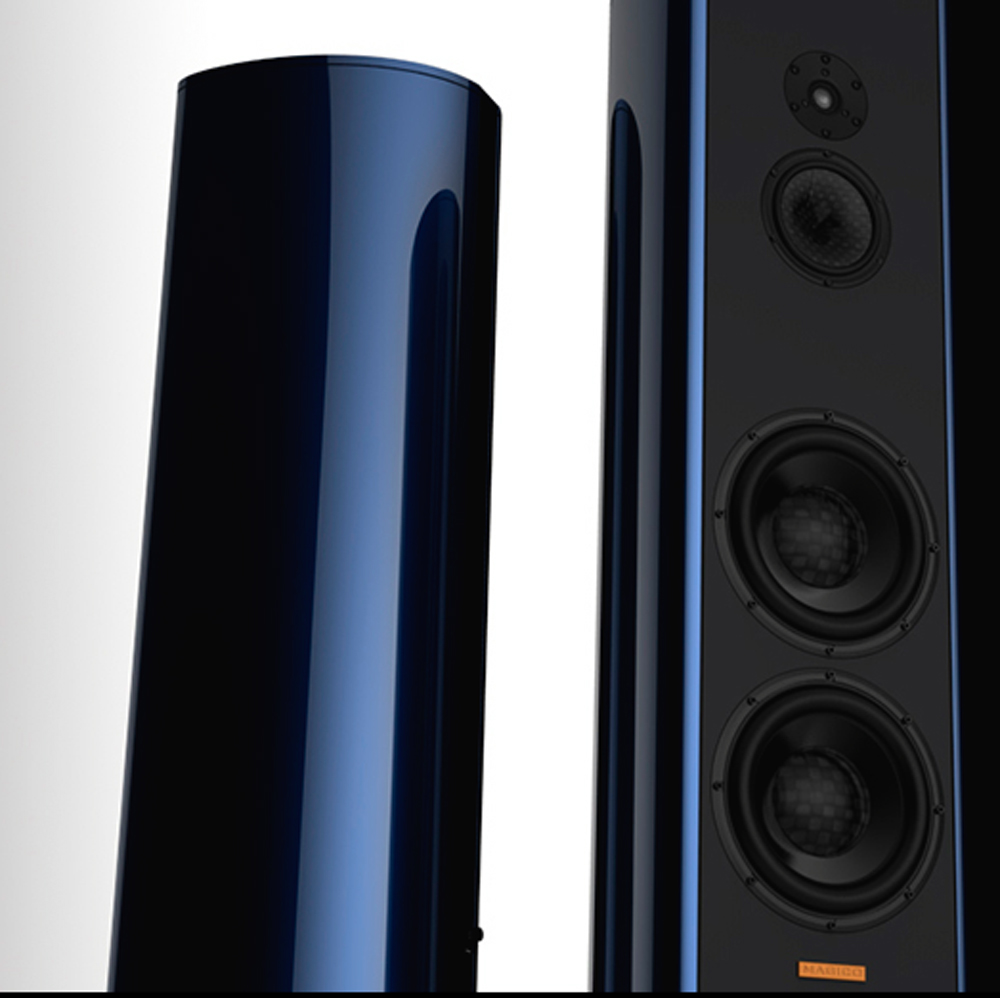

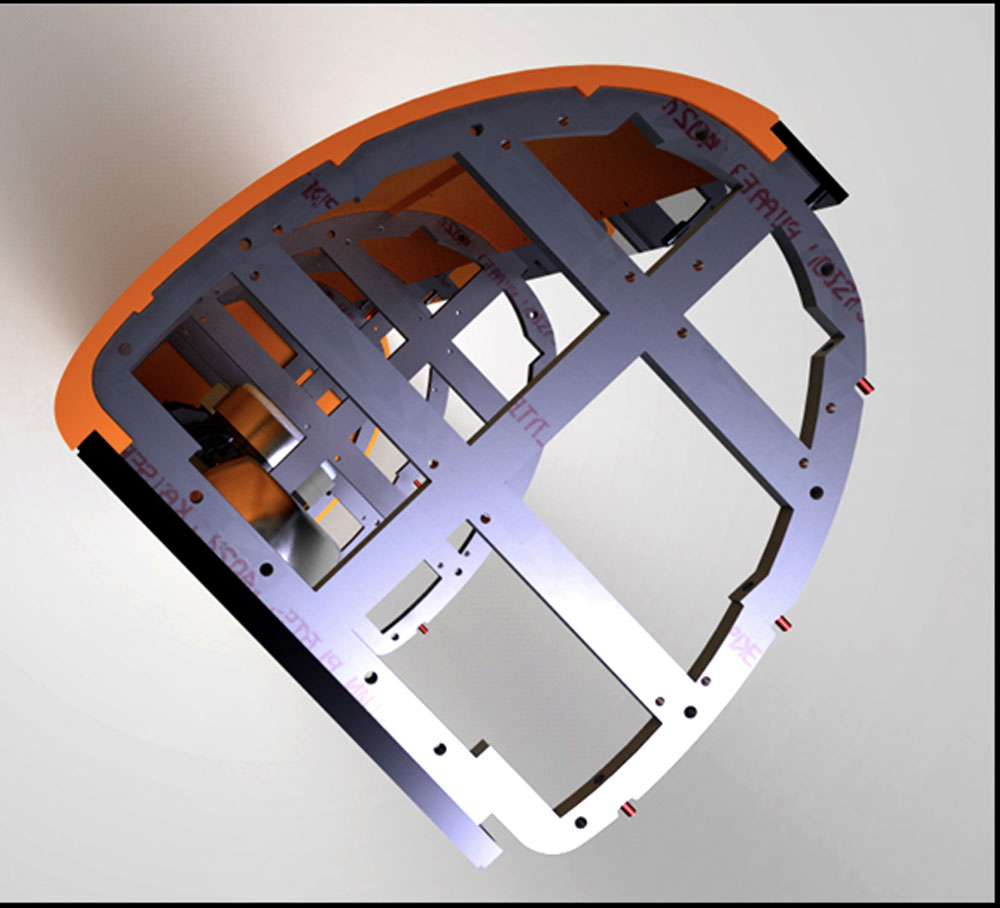

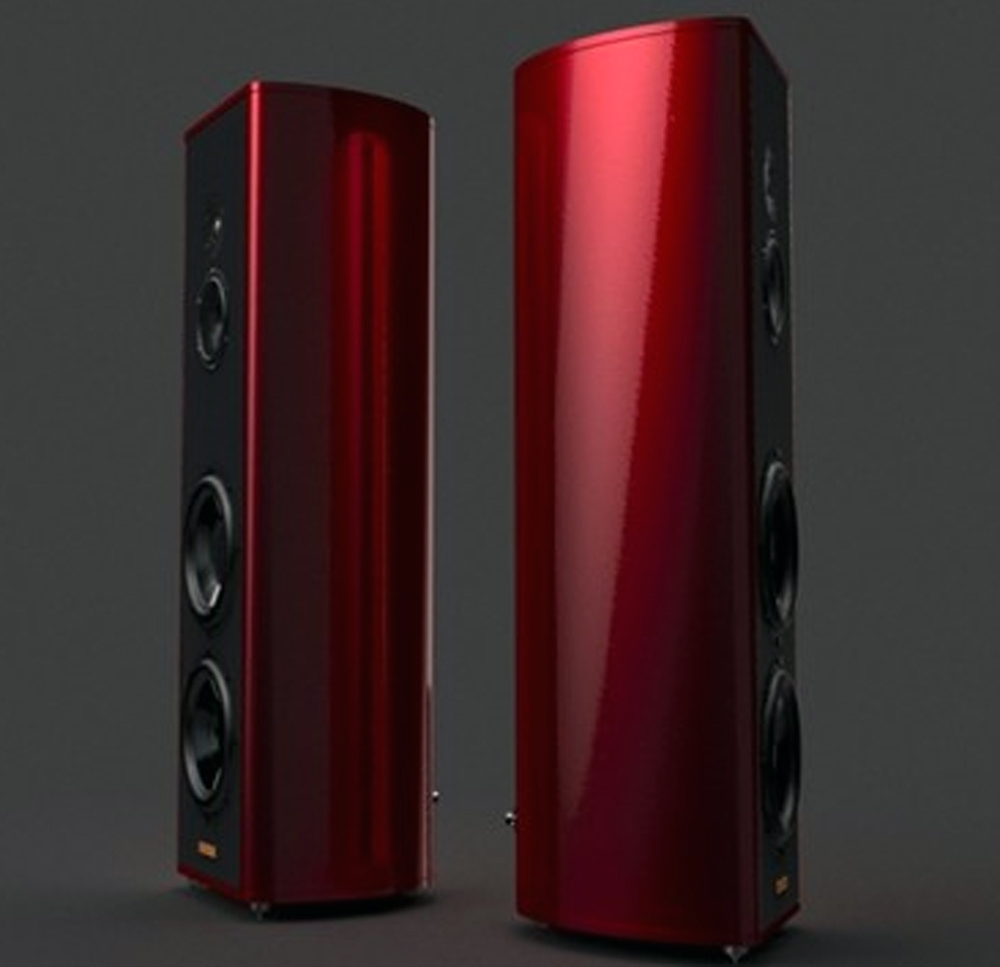

The eye will be first drawn to the S5's new curved enclosure, which is the world's first utilization of 1⁄2" thick, 16" diameter extruded aluminum walls in a loudspeaker. Taking design cues from the Mini, the cabinet design minimizes diffraction effects, internal resonance, and damping requirements. The elegant, paintable exterior offers a shallow profile that will complement a wide variety of end-user living environments. Available in Marico’s signature black anodized finish, the S5 is also offered in many different high gloss and satin M-COAT paint blends. A removable black grille is included - a first for a Magico speaker.



Incorporating entirely new dual-10" Magico hybrid Nano-Tec bass drivers, the S5 is capable of an output of 118dB (@ 50Hz-1 meter). Combining an outer cone ring of aluminum and a Magico Nano-Tec dust cap, the new drivers combine power handling in the low bass with distortion-free response at the top of their pass band. The S5 midrange's dual neodymium, underhung motor system with pure titanium voice coil former is powerfully efficient and extremely low in distortion. The tweeter is a beryllium diaphragm model. A new neodymium motor system has been customized to match the S5's huge dynamic capabilities and power handling, while retaining its inherent wide dispersion and low distortion. This addition to the family is bound to become another milestone.
