The Krell Theater Amplifier Standard comprises five identical channels in a single chassis, providing prodigious output capability to drive any home theater speaker array to lifelike levels--with unmatched Krell sonic excellence.
The Theater Amplifier Standard delivers 200 W per channel into 8 ohms (400 W per channel into 4 ohms). Adjacent channels can be bridged to deliver 800 W into 8 ohms. Featuring Krell Current Mode, discrete Class A, direct-coupled, fully complementary gain stages, Krell's newest circuit topology ensures unmatched transparency and accuracy. The driver/output stage employs 14 high-current transistors per channel.
Backed by an enormous 4000 VA toroidal-transformer power supply, this design delivers huge output current capability for unwavering performance even with challenging speaker loads and the most demanding music and movie program material.

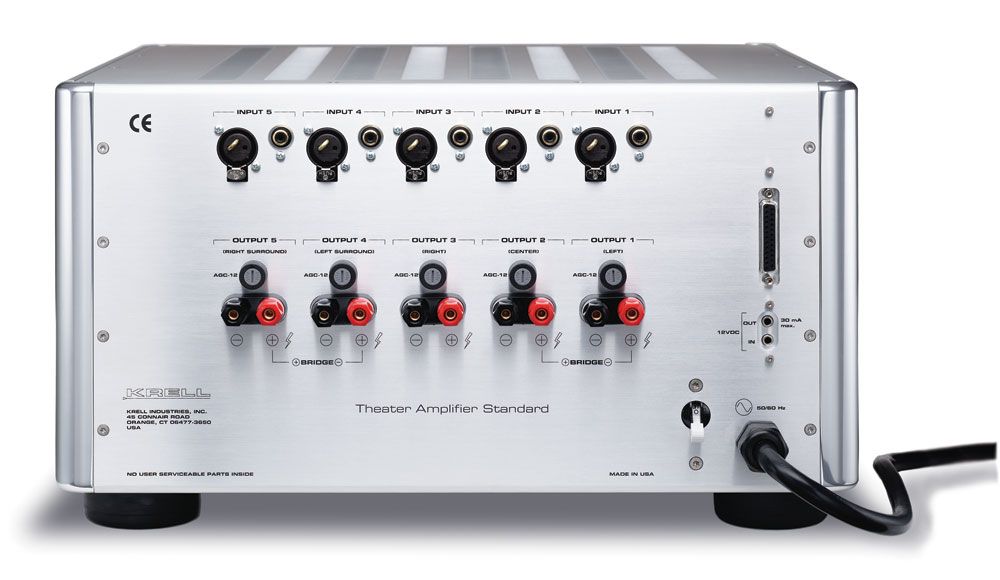

Both balanced and single-ended inputs are provided. 12VDC trigger input/output ports enable remote power on/off operation. A Multi Amplifier Throughput (MAT) feature sends the signal to any or all channels from a single input connection for reduced wiring complexity in multi-amplified systems.
Audio/video amplifier (five 100w) Bal-1,SE-1
The Theater Amplifier Standard is a five-channel power amplifier boasting our latest circuit topology and a substantial power output of 200 Watts per channel into 8 Ohms (400 Watts per channel into 4 Ohms). The elegant Krellcoat exterior houses the technology developed in the Krell Full Power Balanced amplifiers including a gigantic power supply, Krell Current Mode circuitry, and balanced operation. The Theater Amplifier Standard is the reference multi-channel amplifier for systems that are used for stereo or multi-channel music and movie playback.
