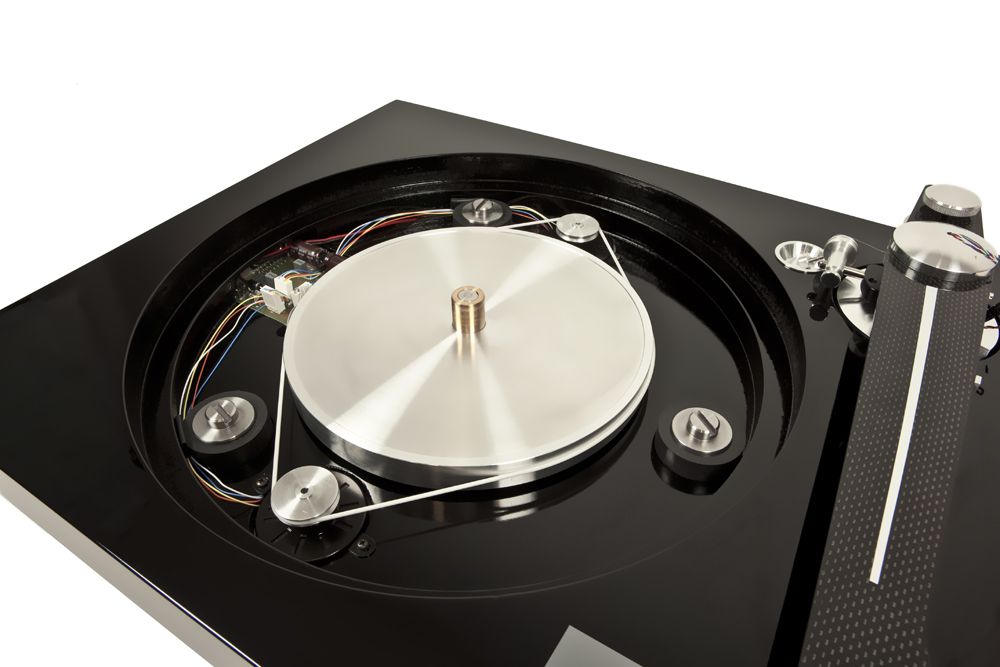

E-Flat Turntable SpecificationDrive type: BeltMotors: 2Speeds: 33/45rpmControls: Soft-touch on/off and speed selectFeet: Magnetic, damped with SorbothanePlatter: 33cm, Sorbothan-damped Yosegi Cartridge SpecificationCartridge type: Moving-coilFrequency response: 15-50kHzOutput voltage: 0.4mV @ 1kHz, 5cm/secChannel separation: 30dB @ 1kHzOutput balance: 0.5dB @ 1kHzVertical tracking force: 1.8-2.2gCoil impedance: 12Ω (1kHz)DC-resistance: 12ΩCoil inductance: 26μH (1kHz)Static compliance: 35×10-6cm/dyneDynamic compliance: 18×10-6cm/dyne (100Hz)Vertical tracking angle: 23°Weight: 6g

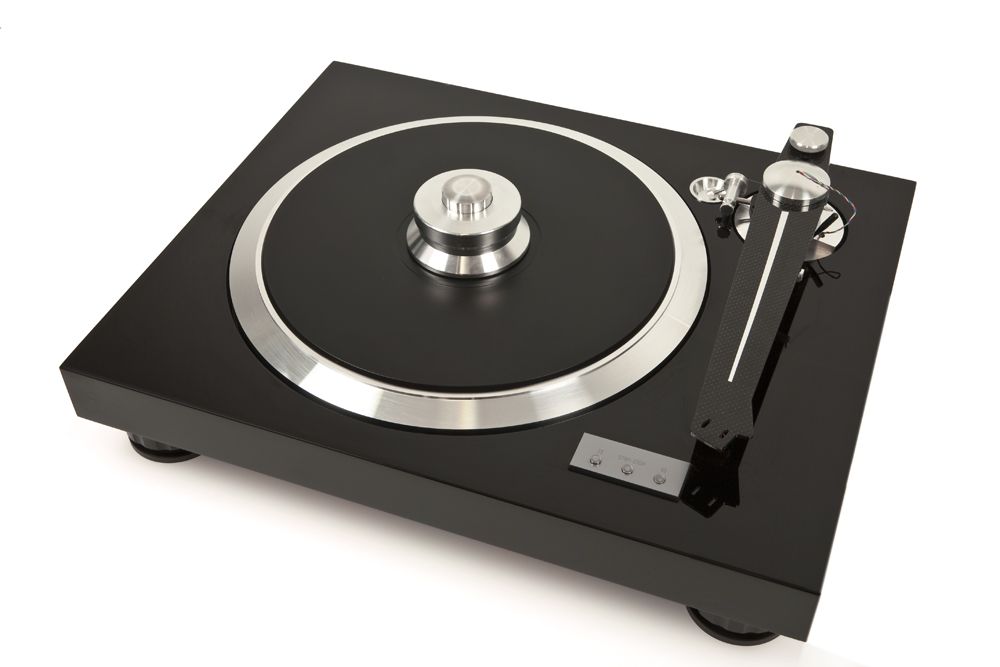

European Audio Team Announces Its Third Turntable … With A Radical New Tonearm!EAT’s E-Flat is a new, forward-thinking turntable supplied with a revolutionary flat tonearm. Although flat arms have been seen in the past, none have been able to offer the rigidity necessary to deliver the stable performance expected of modern tonearms.

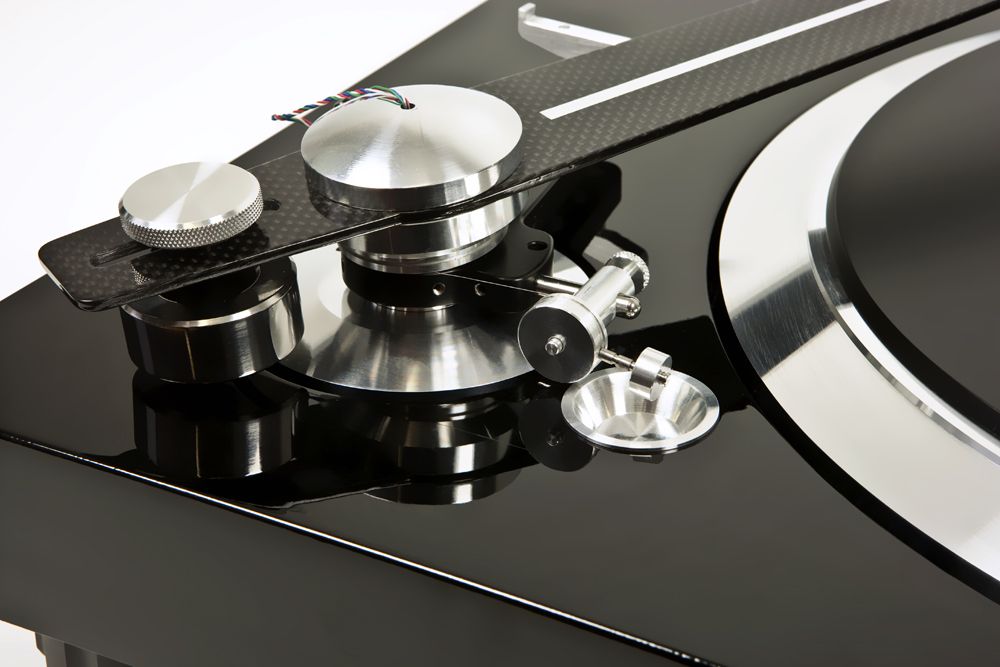

Thanks to the continued evolution of carbon fibre, Forte has been able to create an arm with the practical and aesthetic benefits of a flat form, but without the weaknesses.E-Flat’s mission is to bring to the music lover the highest quality performance, but in a user-friendly design. Ultra-flat, ultra-light and ultra-rigid, the E-Flat tonearm measures 10in long. A unipivot bearing supports the E-Flat, its fully (and easily) adjustable counterweight decoupled by energy- and vibration-absorbing Sorbothane. The E-Flat’s unipivot system is extremely precise and accurately balanced, thanks to components endowed with especially hard metal surfaces. Unwanted motion often attributed to lesser unipivot designs is eliminated by the high mass of unipivot housing and the added security of two metal guides.A further valuable benefit is that its carbon-fibre arm “tube” can be changed by the user to address to specific cartridge requirements, with either lighter or heavier tubes to establish different arm/cartridge resonant frequencies. Adjustable anti-skating and a damped cueing lever are also fitted.
