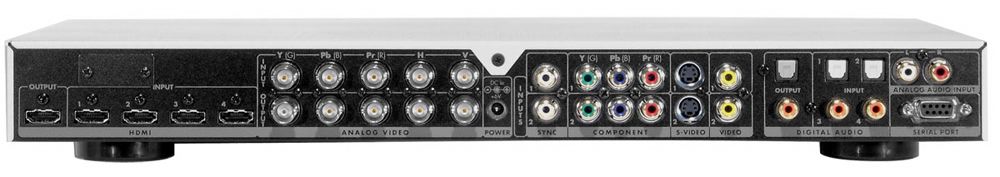

INPUTS
Video
4 x HDMI (DVI-D compatible with HDCP)
2 x S-video (NTSC, PAL or SECAM)
2 x Composite Video (NTSC, PAL or SECAM)
2 x Component (RGBs or YPbPr)
1 x RGBHV/Component (5-BNC connectors)
1 x SD-SDI (optional)
Audio
4 x HDMI
2 x Coaxial Digital
2 x Optical Digital
1 x Analog stereo L/R
OUTPUTS
1 x Digital HDMI (YCbCr or RGB with digital audio)
1 x Analog Video 5-BNC (RGBHV, YPbPR, RGBs or RGB)
1 x Coaxial Digital audio
1 x Optical Digital audio
Power Consumption
< 30W
Power Supply
AC100-240V 50/60Hz
Dimensions
434 x 55 x 263mm with feet
Standard 19" 1U 1.75 Rackmount (optional)
Net weight
4.8kg

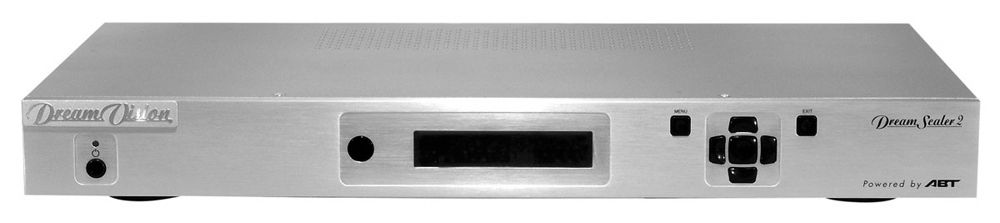

The DreamScaler 2 is a powerful High Definition video processor that brings flexibility and modularity to your home cinema system.
It can upscale any standard signal to the highest quality HDTV's standard 1080p. Equipped with twelve separate video inputs and nine audio inputs, the DreamScaler 2 can be configured to route and mix through a full digital HDMI output or through an analogic video with digital audio.
