Frequency Response: 35–22,000 Hz ± 3dB
Dispersion
Horizontal: 30 degrees
Vertical: 4' (122cm)
Line source
Sensitivity: 90 dB/2.83 volts/meter
Impedance: 4 ohms, 1 at 20kHz
Crossover Frequency: 250 Hz
Components: Custom wound audio transformers, polypropylene capacitors,
air core coils
Woofer type: 8" (20.3cm) and 10" (25.4cm) high
excursion, high rigidity cone with extended throw driver assembly,
non-resonant chamber format.
Bass Control Switch: -3dB below 150 Hz
Power handling: 250 watts per channel
Weight: 105 lbs/each
(48kg)
Dimensions: 67” H x 13” W x 27” D
(170.2 x 33 x 68.6cm)
Electrostatic Loudspeakers

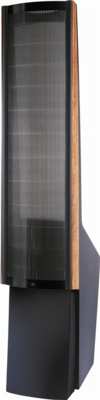

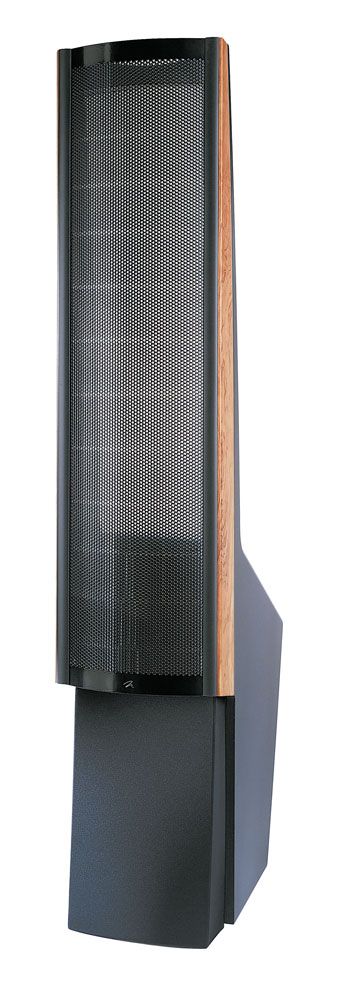

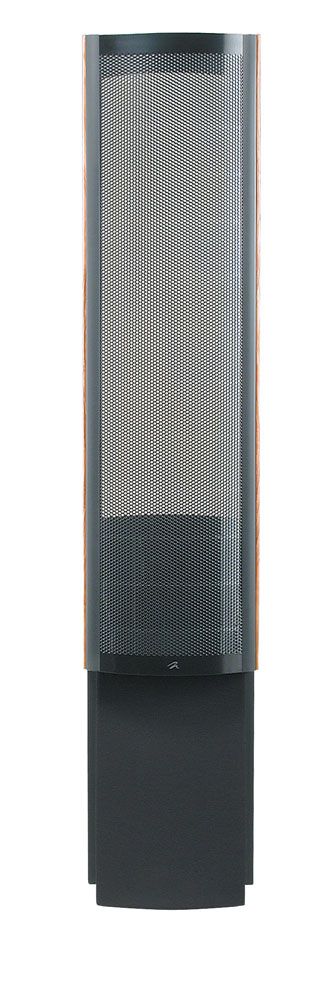

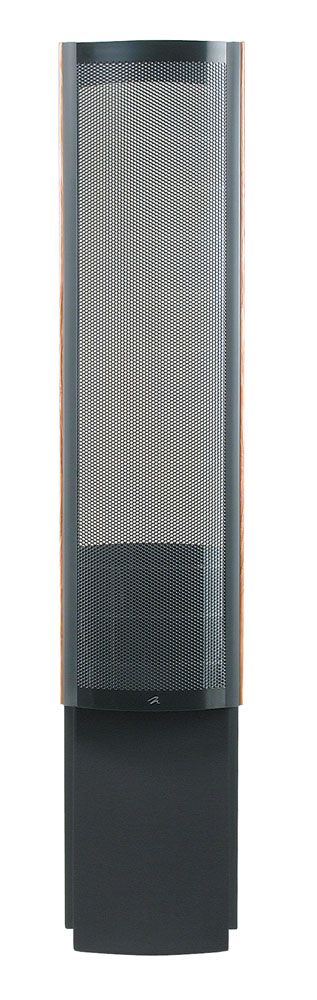

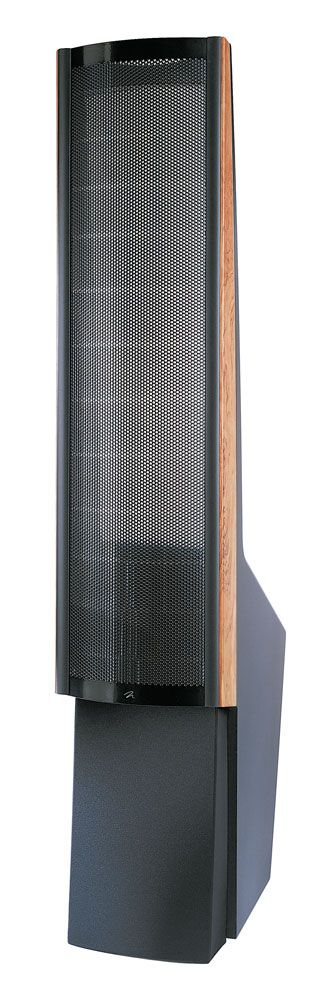

Odyssey leverages MartinLogan's breakthrough hybrid speaker engineering into a unique design maintaining controlled dispersion and outstanding dynamic range while minimizing room interaction.
Its unique bass control system—adapted from Prodigy's exclusive ForceForward™—consists of two proprietary dynamic drivers engineered to perfection. A 10-inch rear-firing driver provides powerful depth while conditioning and extending bass room response.
A second 8-inch front-firing driver extends and resolves bass detail, resulting in clean powerful bass throughout the listening room.
MartinLogan Statement E2 ClearSpar™ stator technology enhances Odyssey's transparent look while increasing both efficiency and power handling.
Odyssey's sculpted cabinet and elegant hardwood rails complement any decor.
Available in matte black with a variety of hand-finished, quick-change trim options. Odyssey is both single and bi-wire capable.
Shipping begins in February. Please contact your local dealer for more information.
